Battery Storage
Battery modules, racks, DC cabinets and thermal management provide the storage layer.
Energy storage systems
C&I Energy Storage Systems for Commercial Projects in Europe
SAKETE energy storage systems are organized by system architecture: battery cabinets, Battery Cabinet ESS with External Hybrid Inverter, all-in-one ESS and containerized ESS.
This section explains ESS as a system outcome: battery storage plus a matched hybrid inverter or PCS, with BMS, EMS, protection and cabinet or container architecture.
EU local stock B2B project supply German after-sales
ESS system composition
A complete ESS is not only a battery cabinet. For C&I projects, SAKETE matches the battery side with a hybrid inverter or PCS, then adds BMS, EMS, protection and cabinet or container integration.
+
Battery + Hybrid Inverter
Used for PV plus storage projects where a hybrid inverter manages solar, battery and grid interaction.
Battery + PCS
Used for larger C&I ESS projects where PCS handles bidirectional power conversion.
=
Complete ESS
Battery, inverter or PCS, BMS, EMS, protection and enclosure become one project-ready system.
At a glance
Compare the core electrical and physical specifications across the range. Full datasheets are linked on each product page.
| Model | Capacity | Power | Voltage | Cycle life | Cooling | Dimensions (W×D×H) | Warranty |
|---|---|---|---|---|---|---|---|
| SKTESS72 / 86 / 100Request quote › | 71.7 / 86 / 100.4 kWh | Pairs with hybrid inverter or PCS | 256 / 307 / 358.4 V | ≥ 6,000 | Air cooling | 851.5 × 1325 × 2280 mm | 10 yr battery / 5 yr system |
| SKTESS112Request quote › | 112.5 kWh | Pairs with hybrid inverter or PCS | 358.4 V | ≥ 6,000 | Air cooling | 852 × 1330 × 2315 mm | 10 yr battery / 5 yr system |
| SKTESS72–100 + inverterRequest quote › | 71.7 / 86 / 100.4 kWh | 50 kW external hybrid inverter | 256 / 307 / 358.4 V | ≥ 6,000 | Air cooling | 851.5 × 1325 × 2280 mm | 10 yr battery / 5 yr system |
| SKTESS112 + inverterRequest quote › | 112.5 kWh | 30–50 kW external hybrid inverter | 358.4 V | ≥ 6,000 | Air cooling | 852 × 1330 × 2315 mm | 10 yr battery / 5 yr system |
| SKTESS261-125KRequest quote › | 261.2 kWh | 75 / 100 / 125 kW external hybrid inverter | 832 V | ≥ 6,000 | Liquid cooling | 1500 × 1350 × 2330 mm | 10 yr battery / 5 yr system |
| SKTESS215-100KRequest quote › | 215 kWh | 100 kW integrated PCS | 768 V | ≥ 6,000 | Air cooling | 1630 × 1365 × 2250 mm | 10 yr battery / 5 yr system |
| SKTESS261-125KRequest quote › | 261.2 kWh | 125 kW integrated PCS | 832 V | ≥ 6,000 | Liquid cooling | 1500 × 1350 × 2330 mm | 10 yr battery / 5 yr system |
| SKTESS1200-500KRequest quote › | 1.21 MWh | 500 kW PCS | 768 V | ≥ 6,000 | Air cooling | 6058 × 2438 × 2896 mm (20 ft) | 3 yr system (≤6,000 cycles) |
| SKTESS2170-1000KRequest quote › | 2.17 MWh | 1 MW PCS | 768 V | ≥ 8,000 | Hybrid cooling | 6058 × 2438 × 2591 mm (20 ft) | 3 yr system (≤6,000 cycles) |
| SKTESS5000-2500KRequest quote › | 5.02 MWh | 2.5 MW prefab inverter substation | 1331.2 V | ≥ 6,000 | Liquid cooling | 6058 × 2438 × 2896 mm (20 ft) | 3 yr system (≤6,000 cycles) |
| SKTESS10000-5000KRequest quote › | 10.03 MWh | 5 MW PCS (2.5 MW × 2 block) | 1331.2 V | ≥ 6,000 | Liquid cooling | 6058 × 2438 × 2896 mm × 3 (20 ft) | 3 yr system (≤6,000 cycles) |
Certifications & safety
Products in this range are certified to European and international standards for cells, power electronics, transport and EMC.
- CE
- UN 38.3
- IEC 62619
- CB
- EMC EN IEC 61000
- IEC 62477
Best fit
- Factories and warehouses needing peak shaving
- Commercial solar-plus-storage projects
- System integrators selecting ESS architecture
Common applications
- Peak shaving
- Self-consumption optimisation
- PV plus ESS
- Battery plus hybrid inverter projects
- Battery plus PCS projects
Procurement reasons
- Battery plus inverter or PCS architecture stated clearly
- Separated from standalone battery pages
- External hybrid inverter architecture clearly labeled
- Air-cooled and liquid-cooled cabinet options
Product range: DC Battery Cabinets

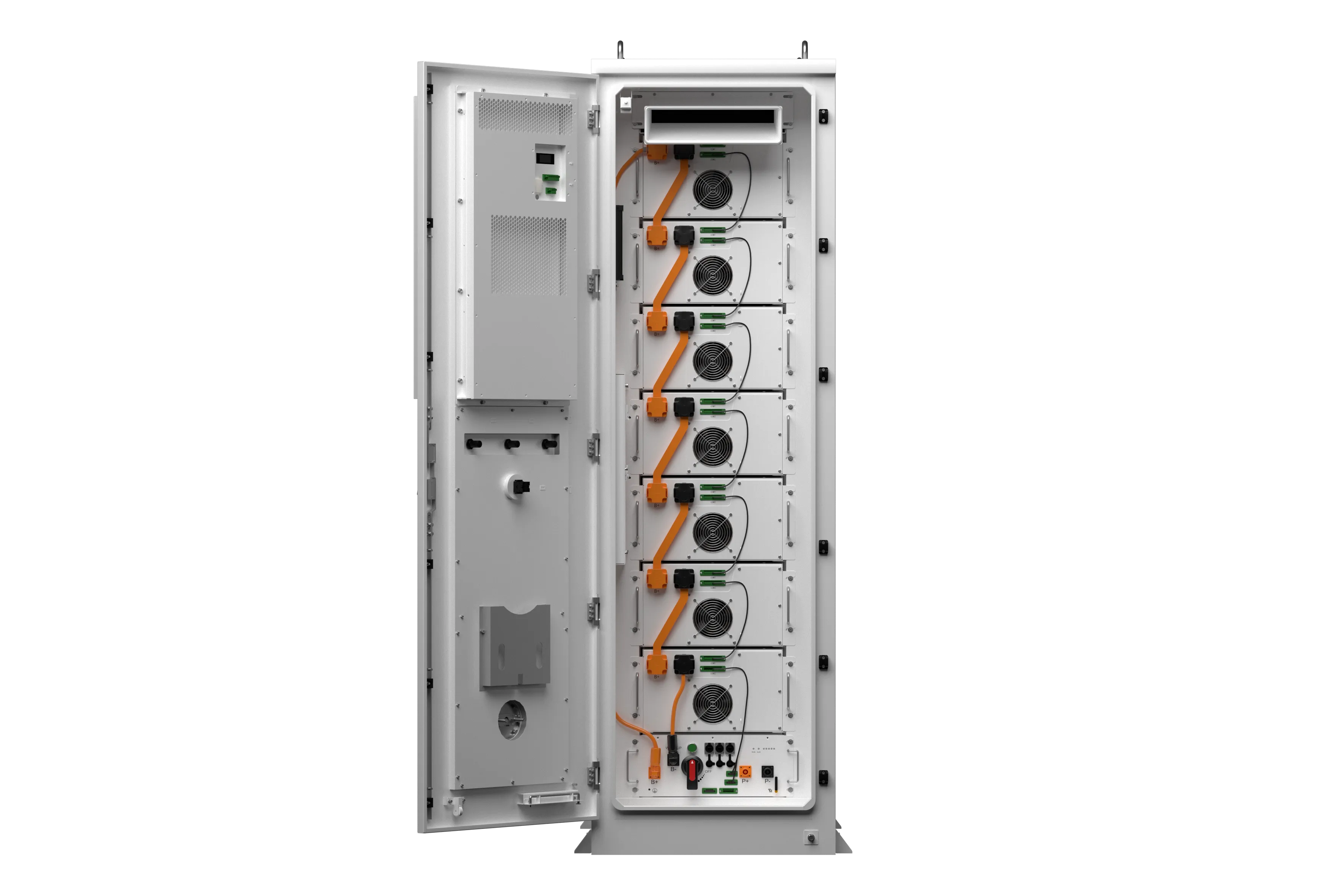

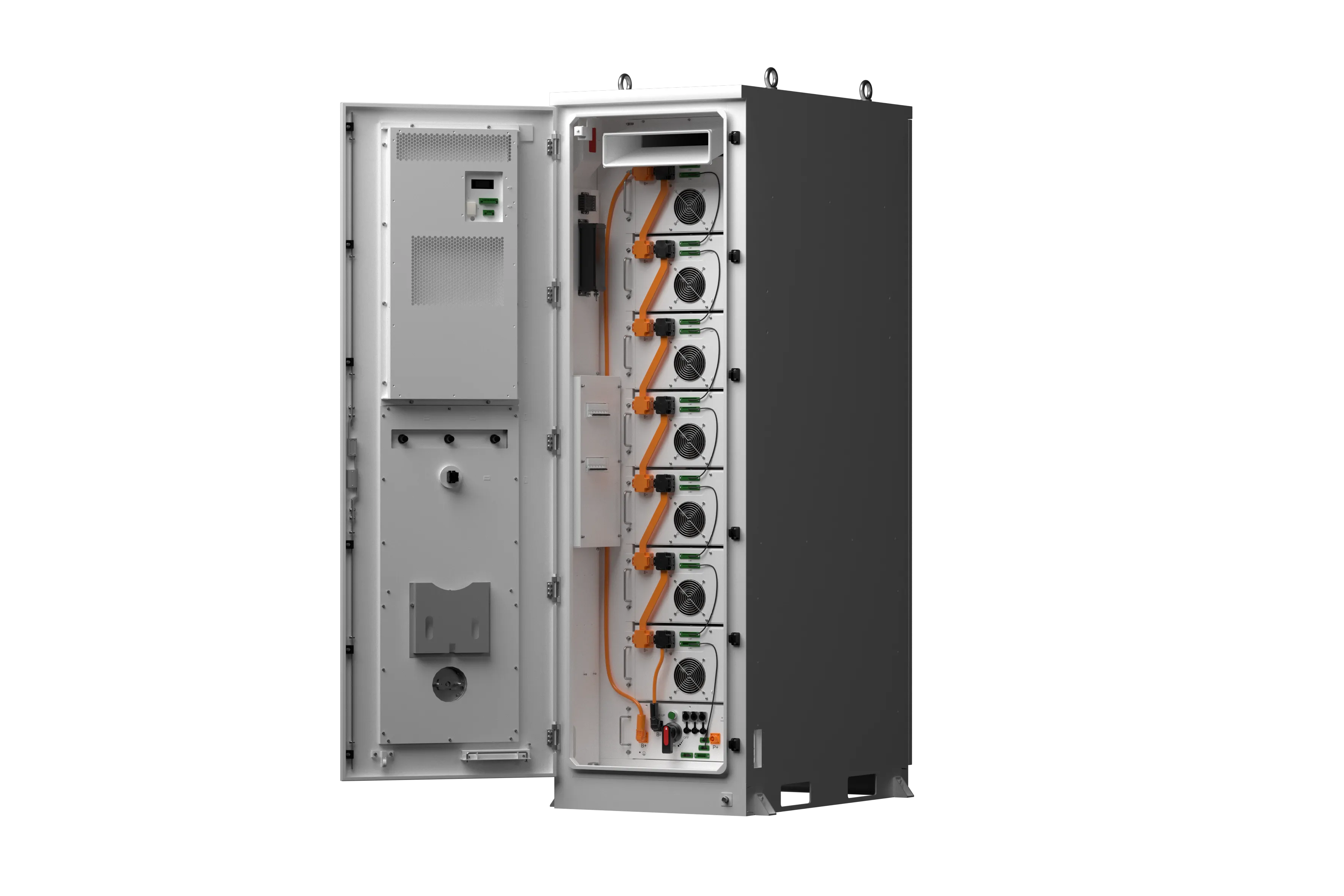

Air-Cooled DC Battery Cabinet 72-100kWh
Review curated product visuals and selected technical files for Air-Cooled DC Battery Cabinet 72-100kWh.

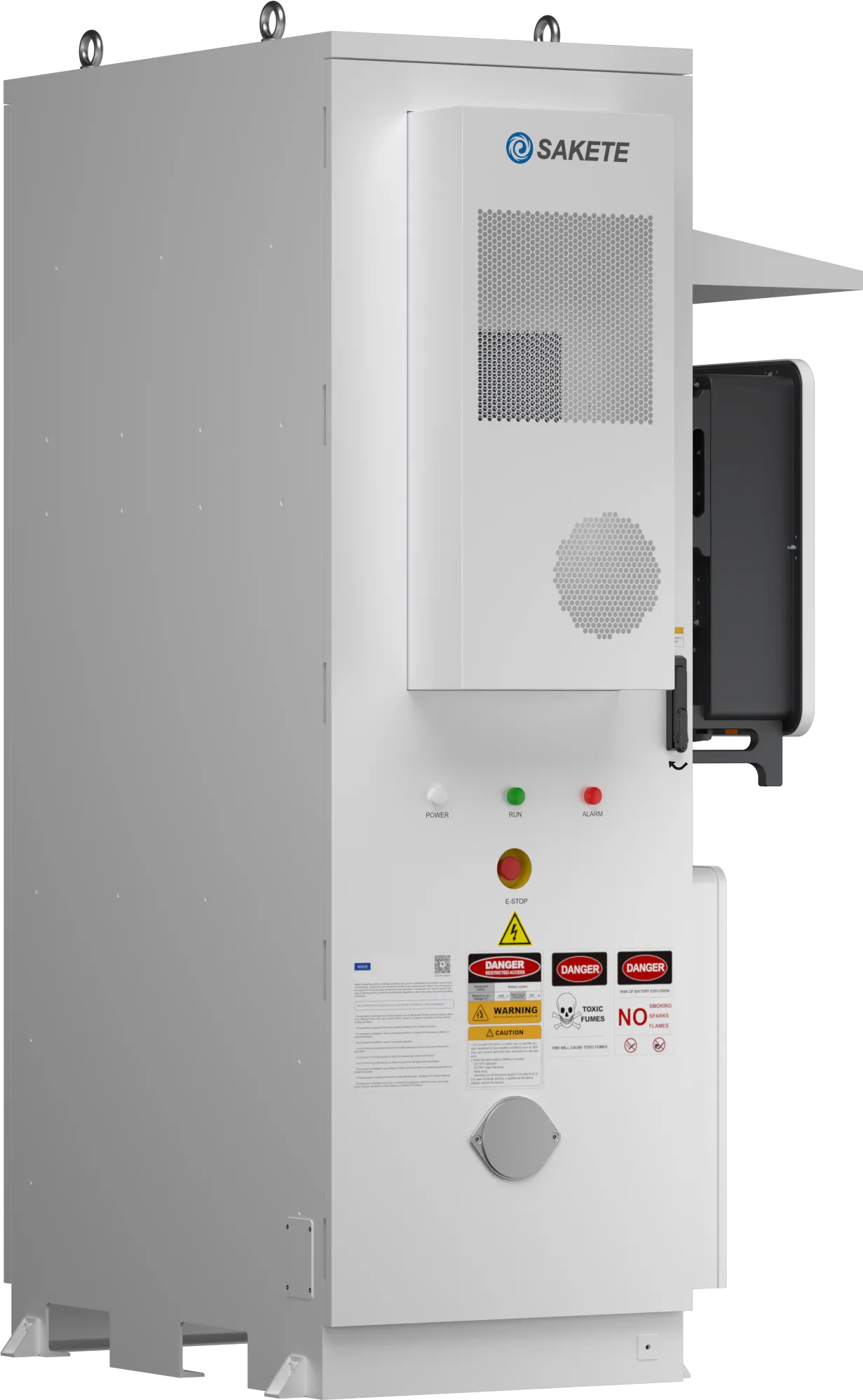

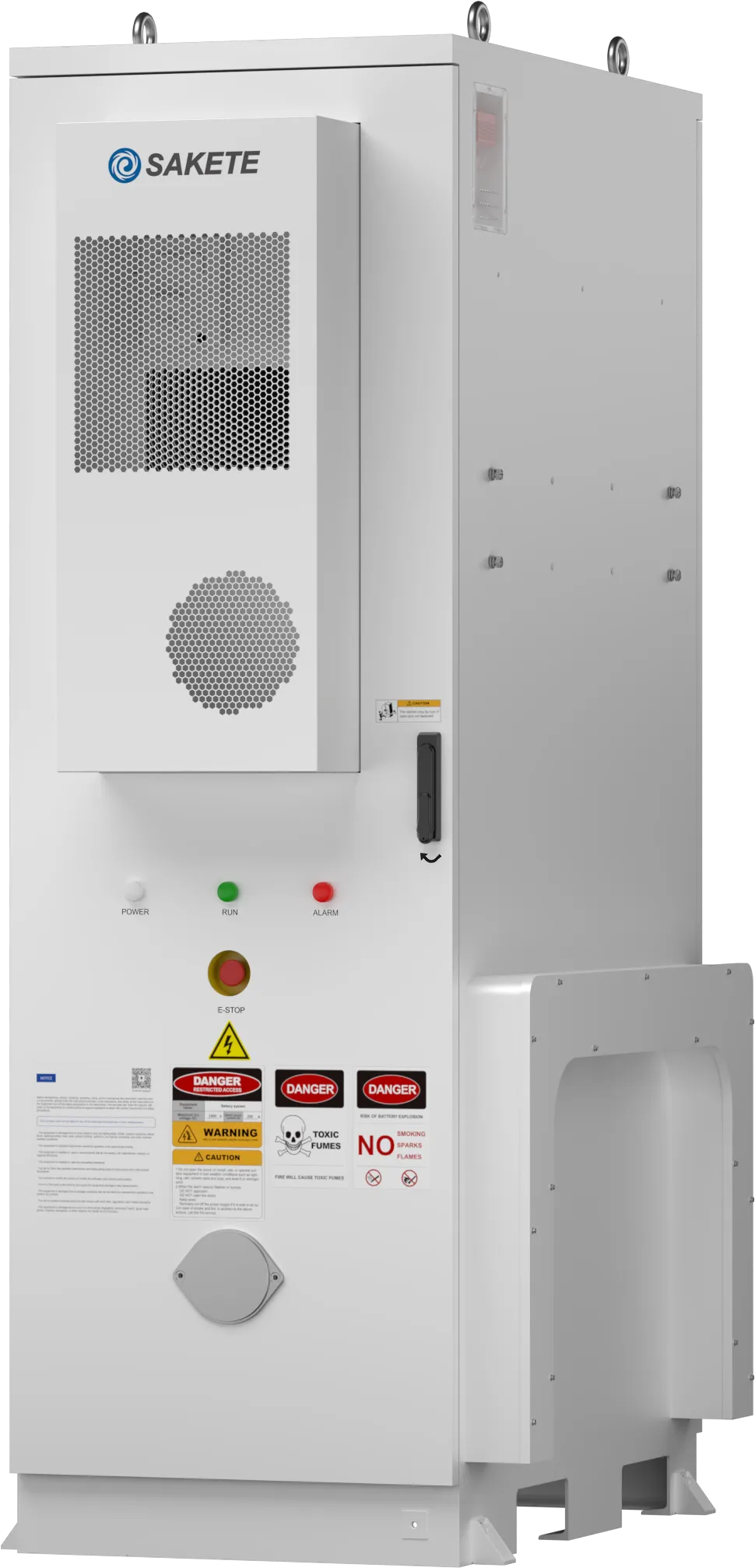

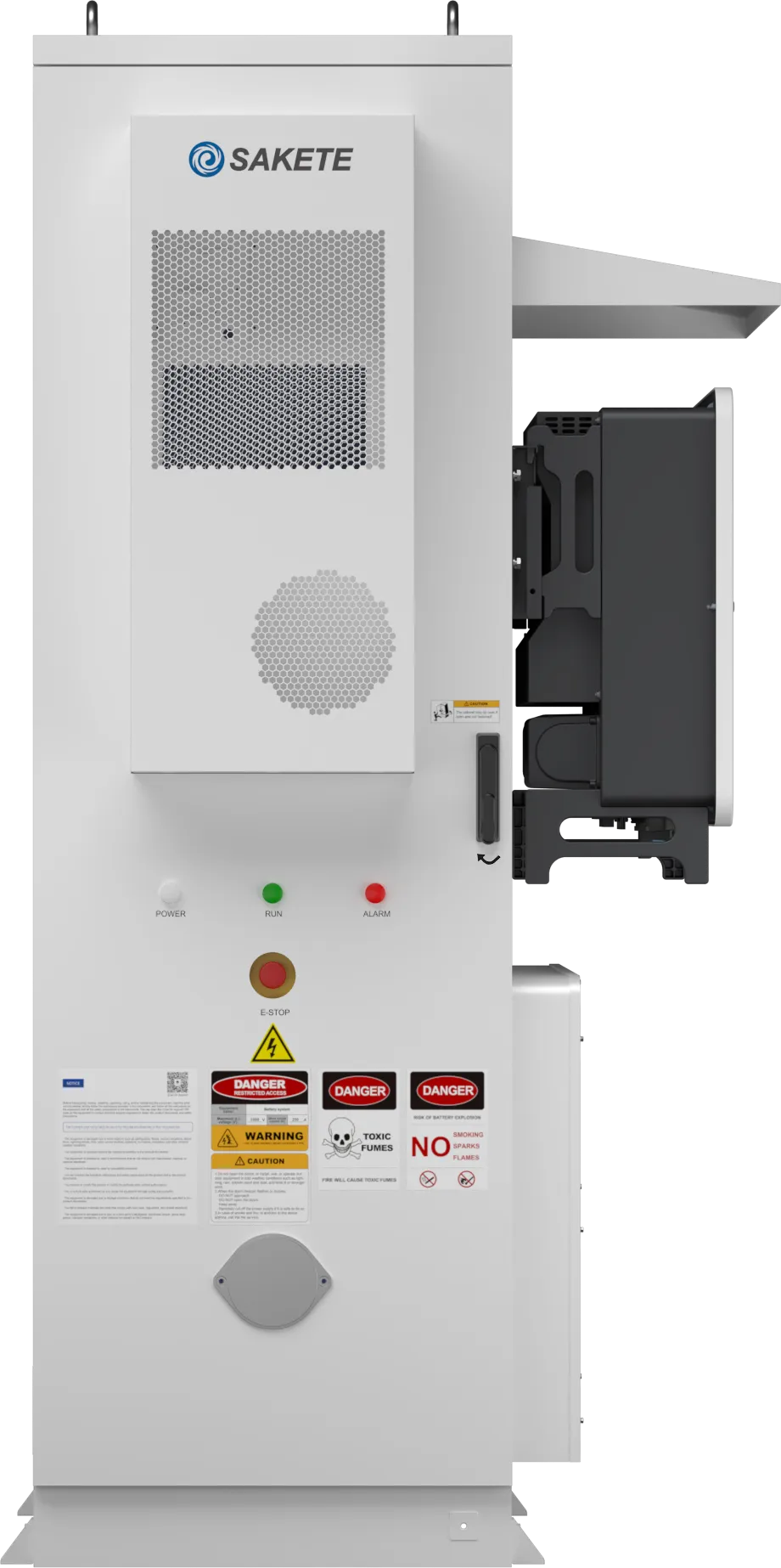

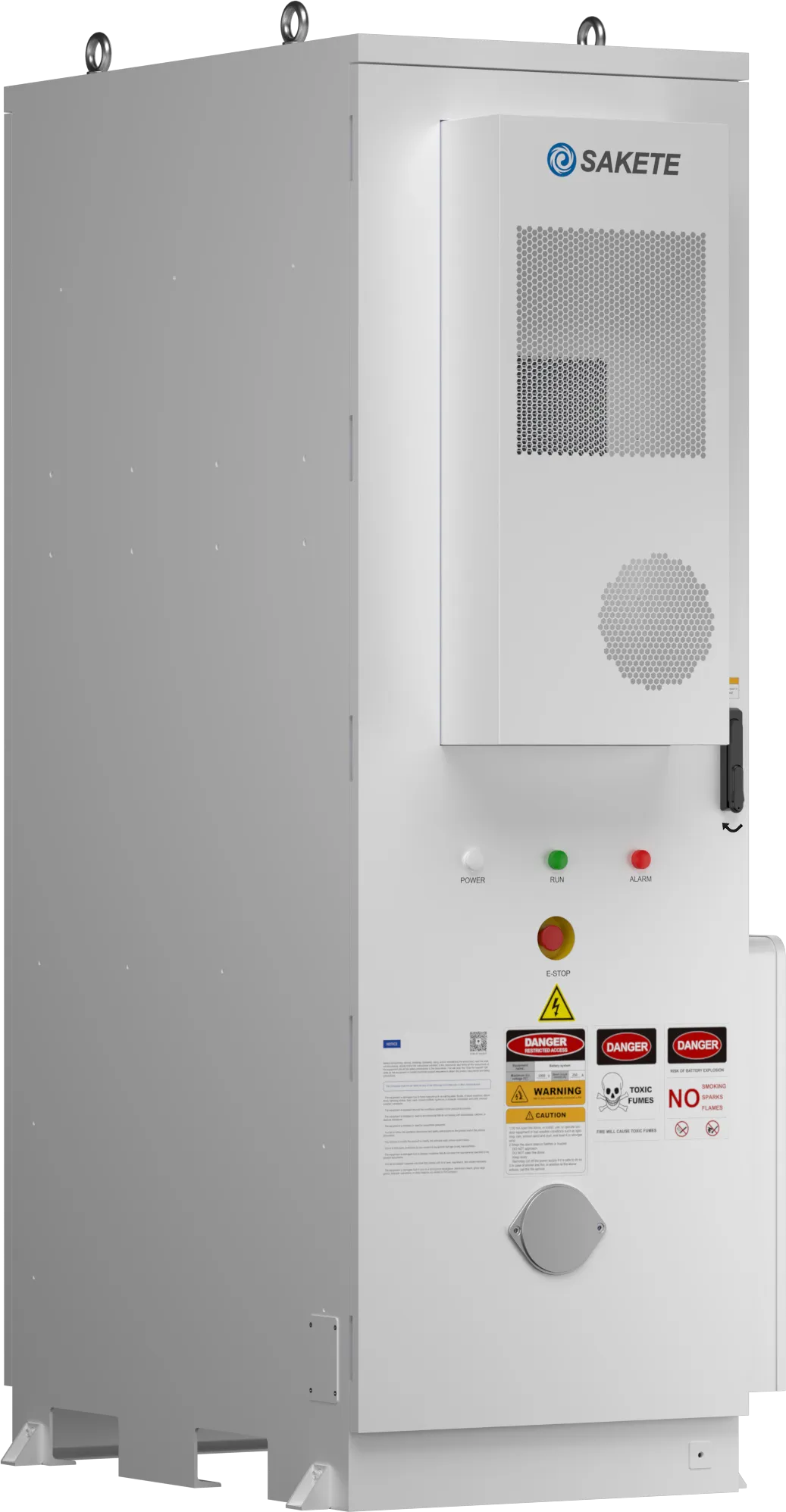

Air-Cooled DC Battery Cabinet 112kWh
Review curated product visuals and selected technical files for Air-Cooled DC Battery Cabinet 112kWh.
Product range: Battery Cabinet ESS with External Hybrid Inverter

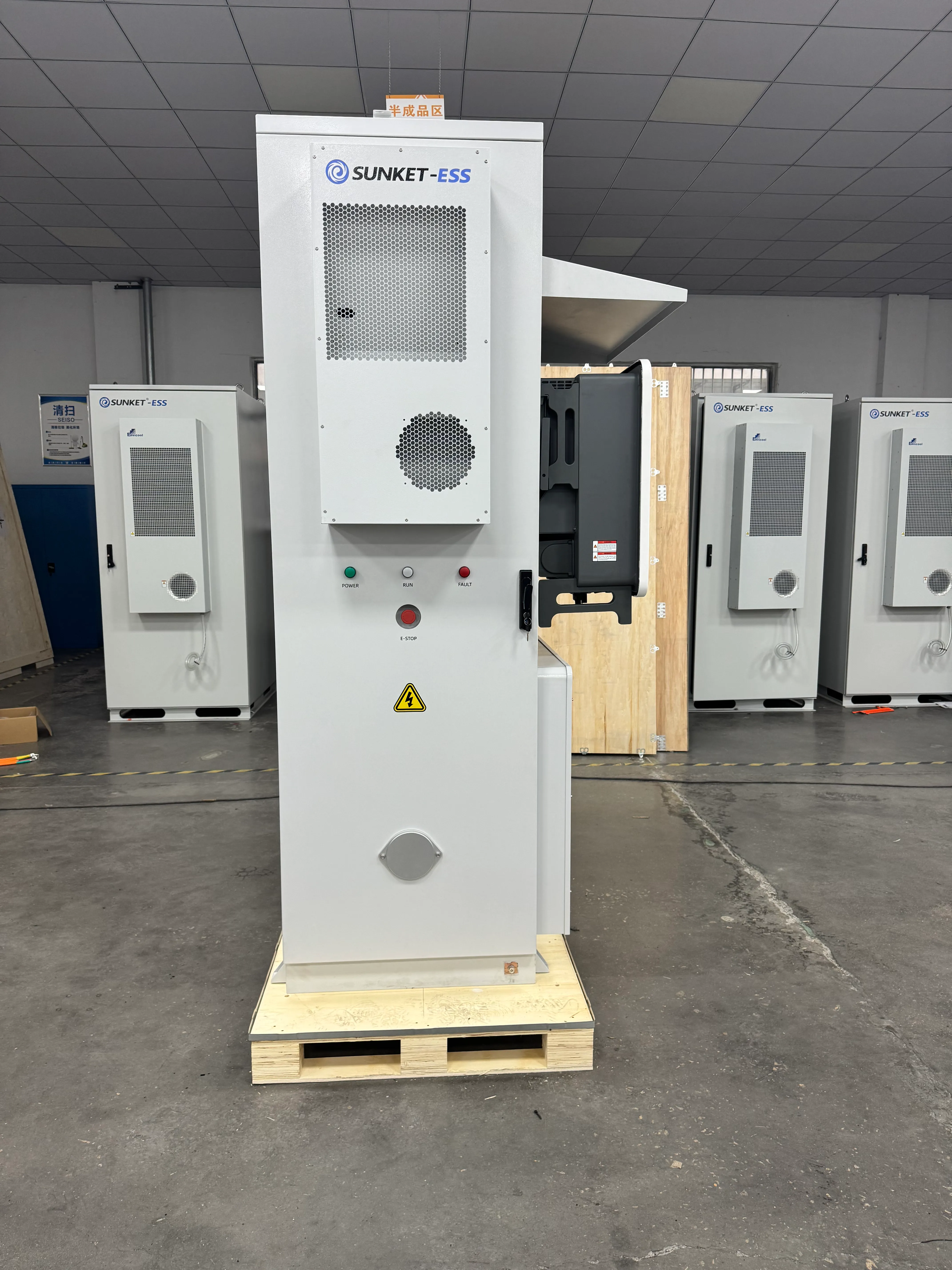

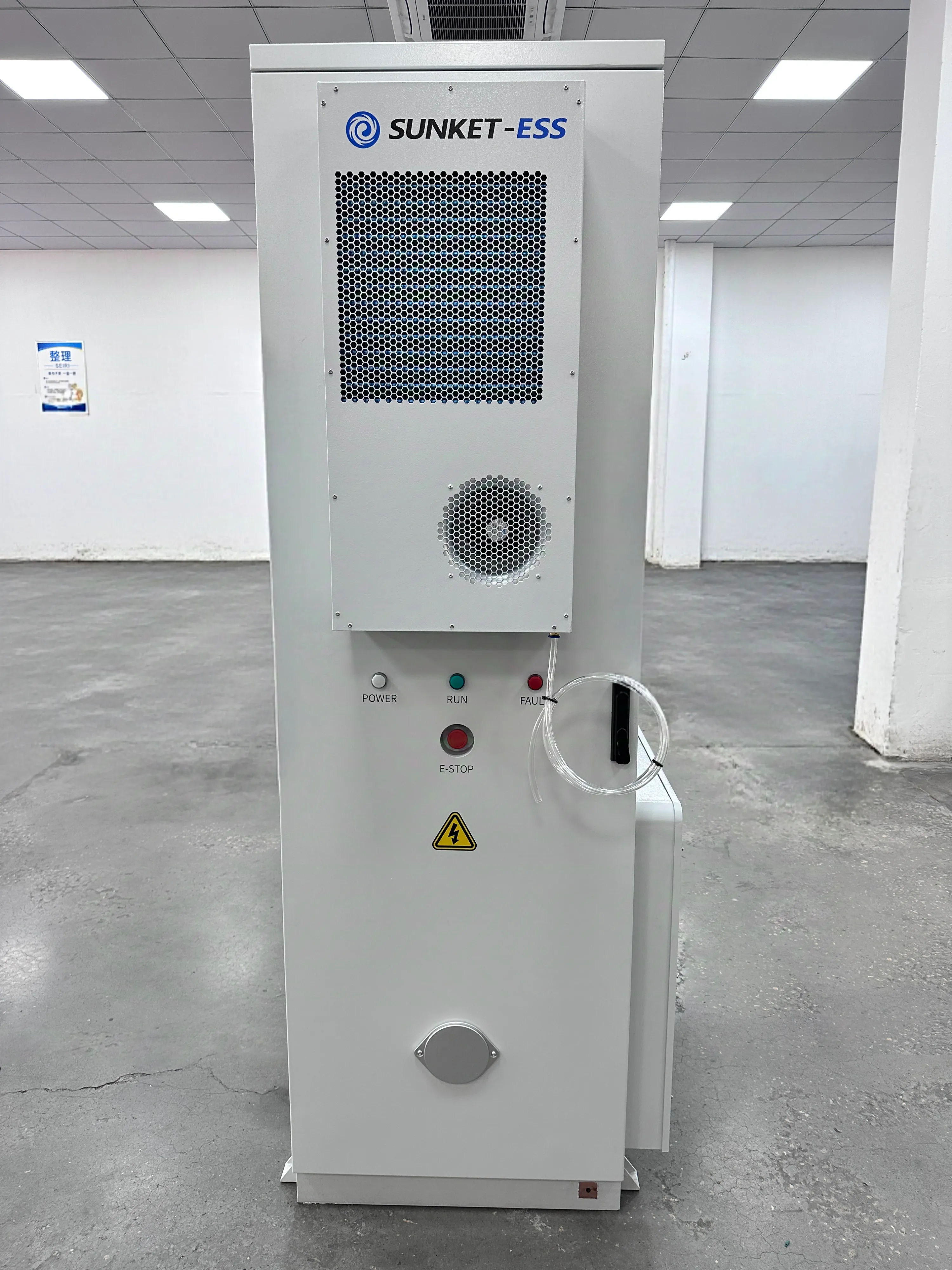

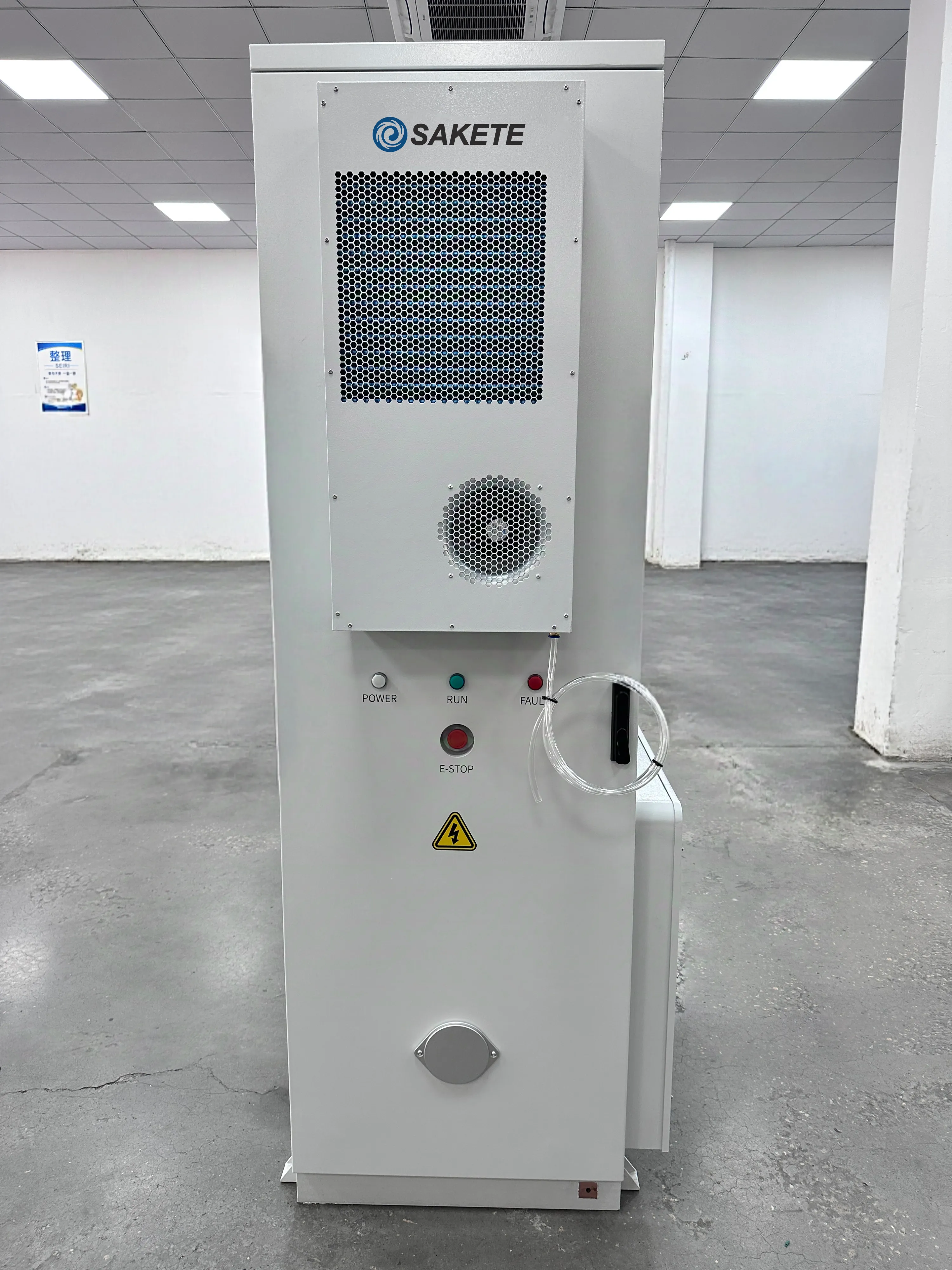

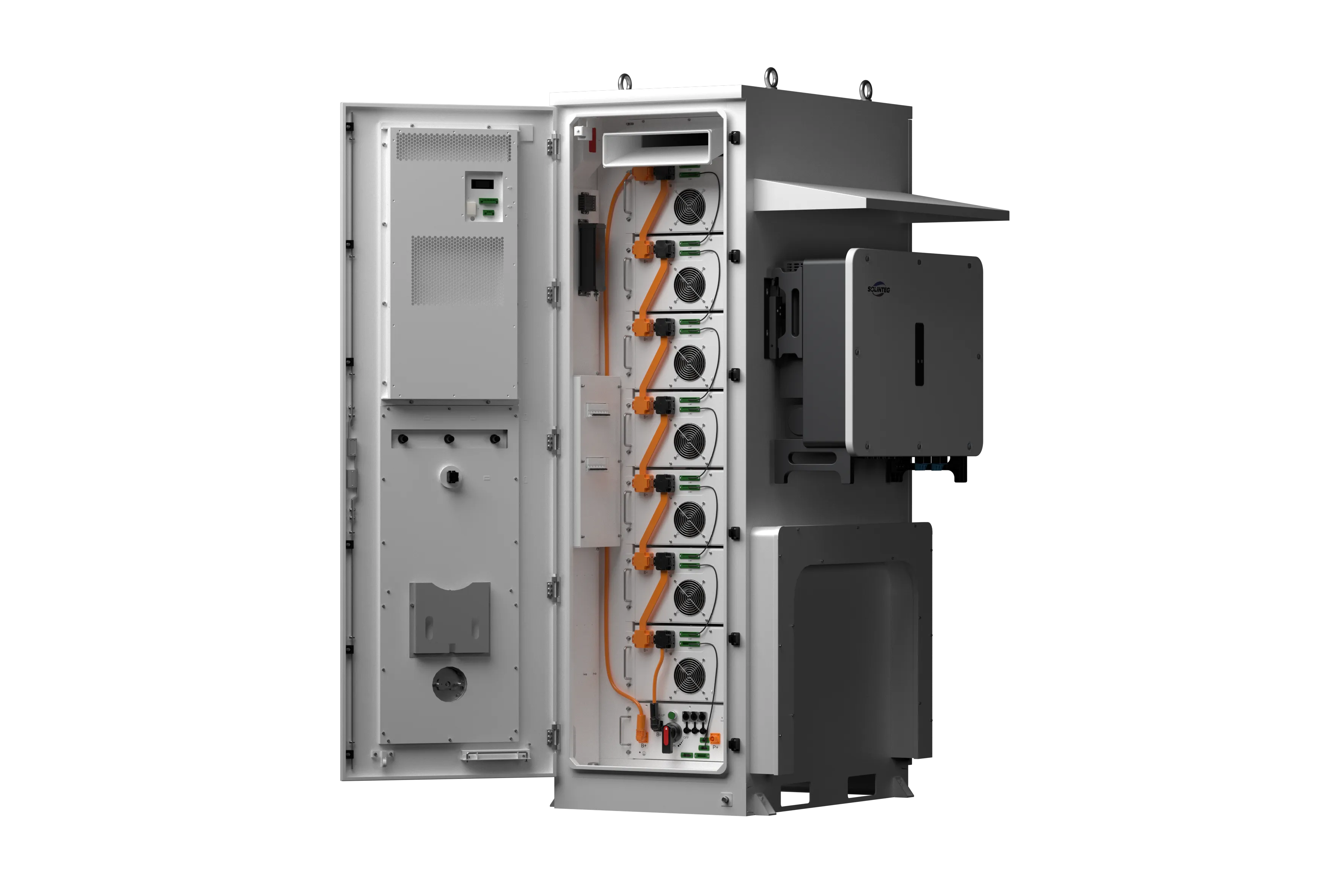

Air-Cooled Battery Cabinet ESS 72-100kWh
Review curated product visuals and selected technical files for Air-Cooled Battery Cabinet ESS 72-100kWh.

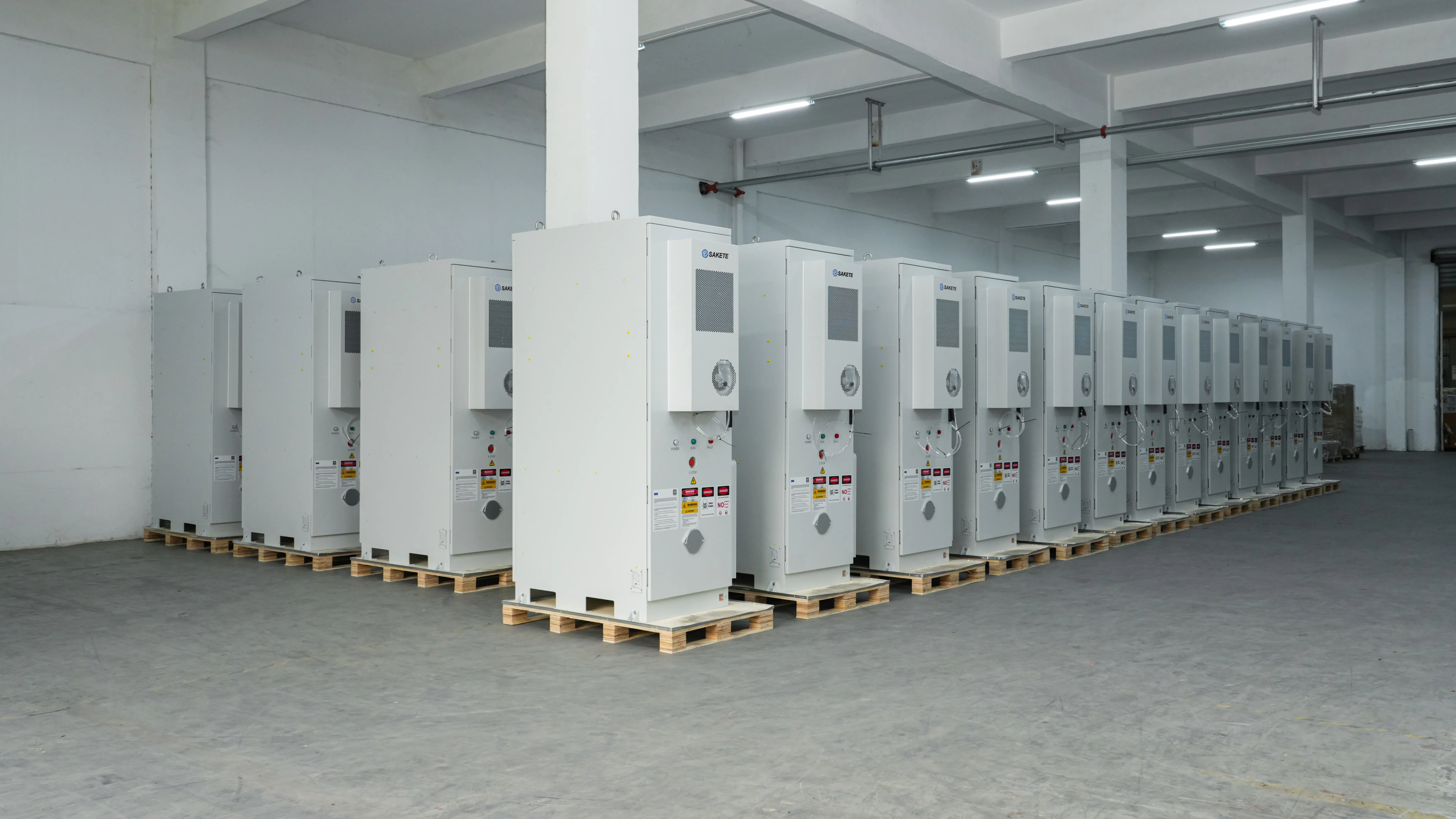

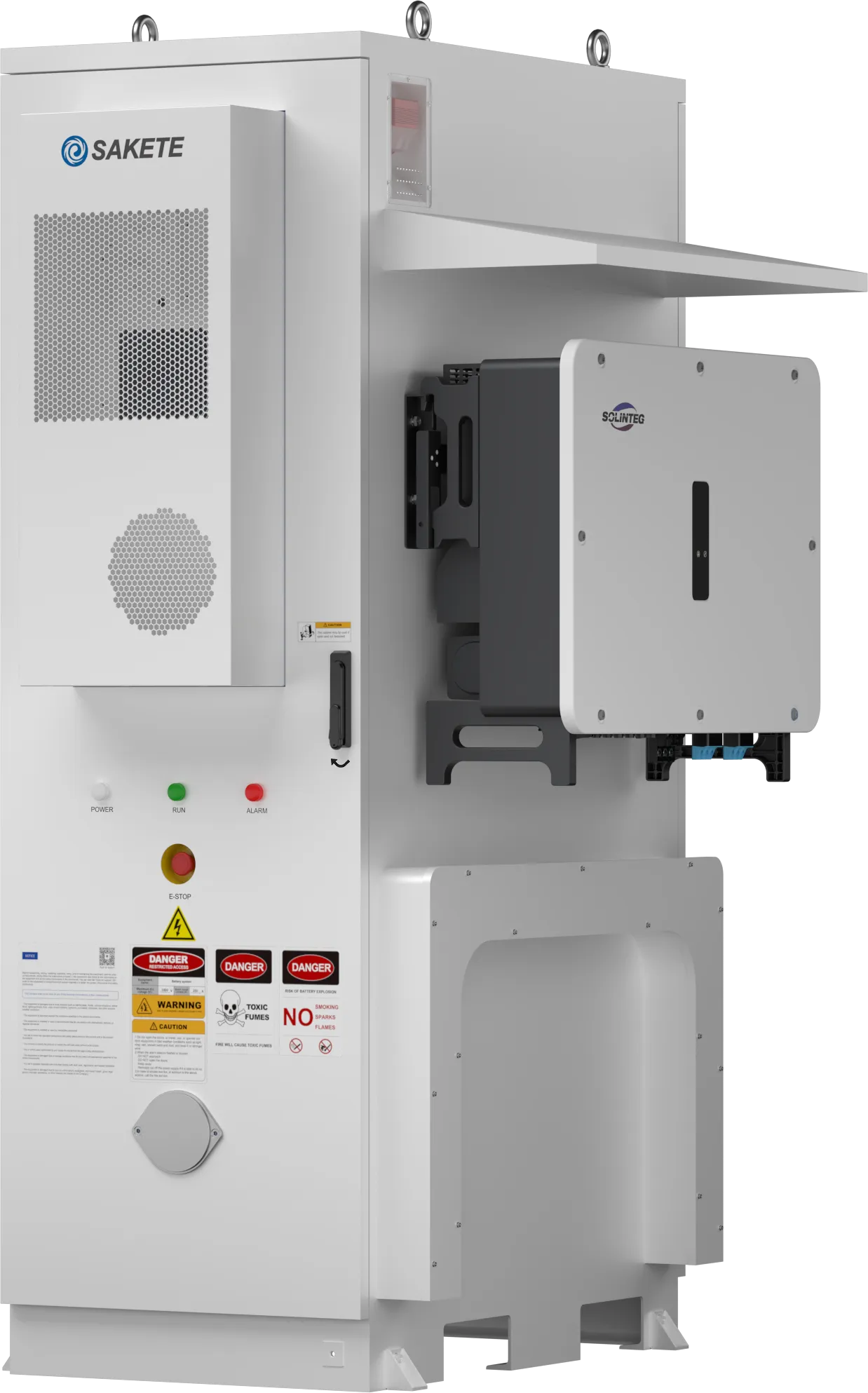

Air-Cooled Battery Cabinet ESS 112kWh
Review curated product visuals and selected technical files for Air-Cooled Battery Cabinet ESS 112kWh.
Technical review
- air cooled battery cabinet 112kwh growatt sktess112 30 50k
- air cooled battery cabinet 112kwh sktess112 inverter h2 deye
- air cooled battery cabinet 112kwh sktess112 inverter h3 growatt
+1 more files in Downloads

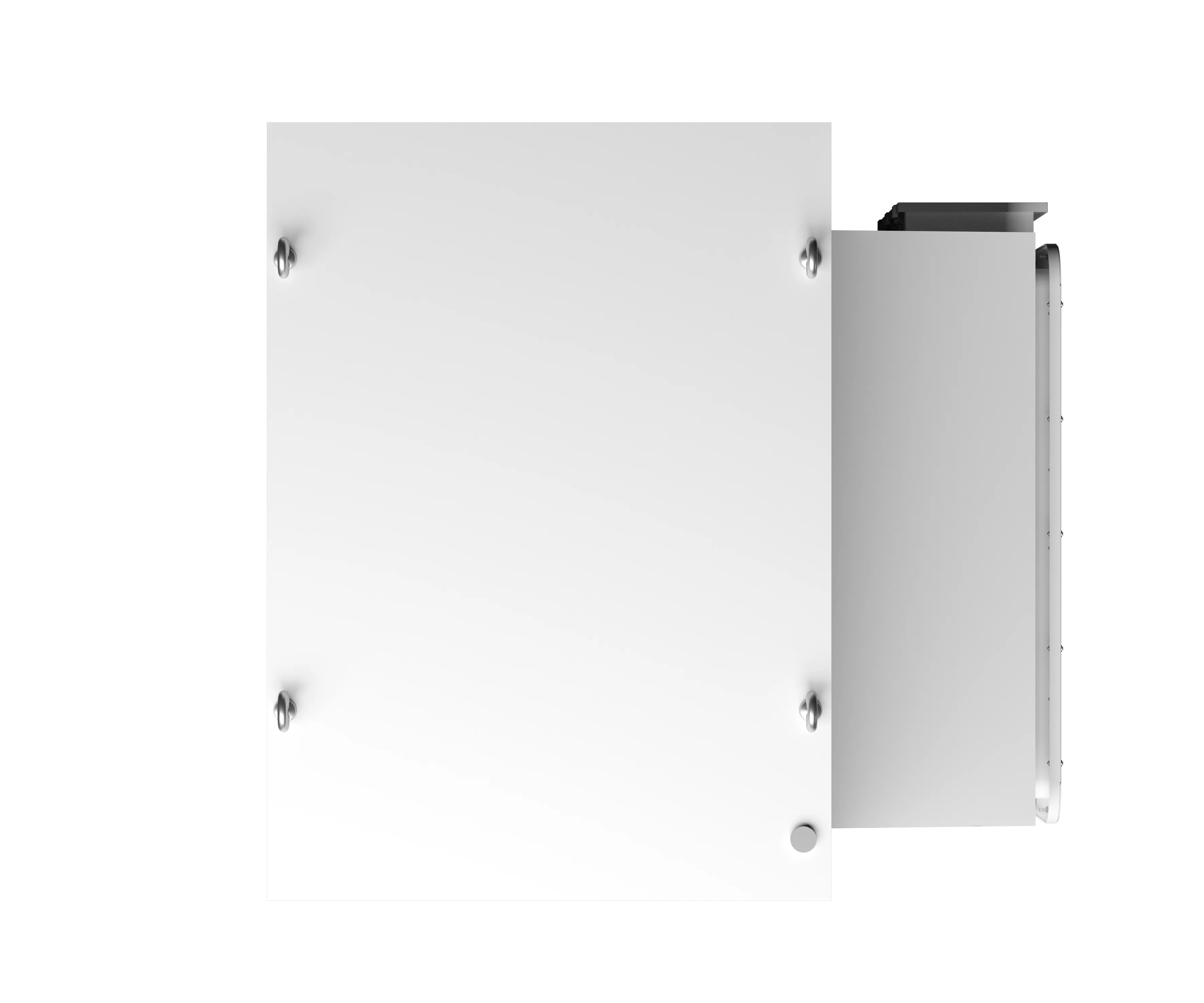

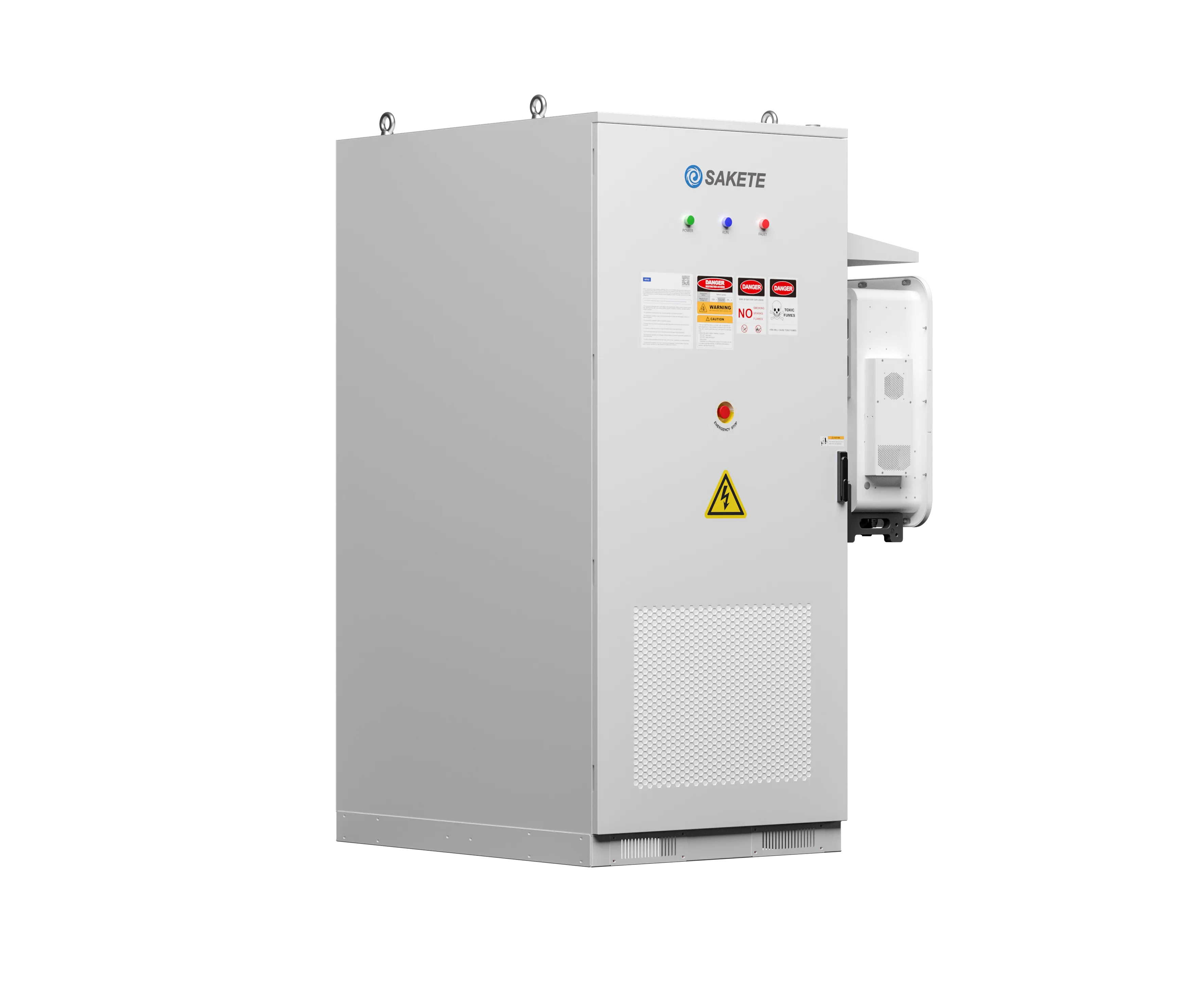

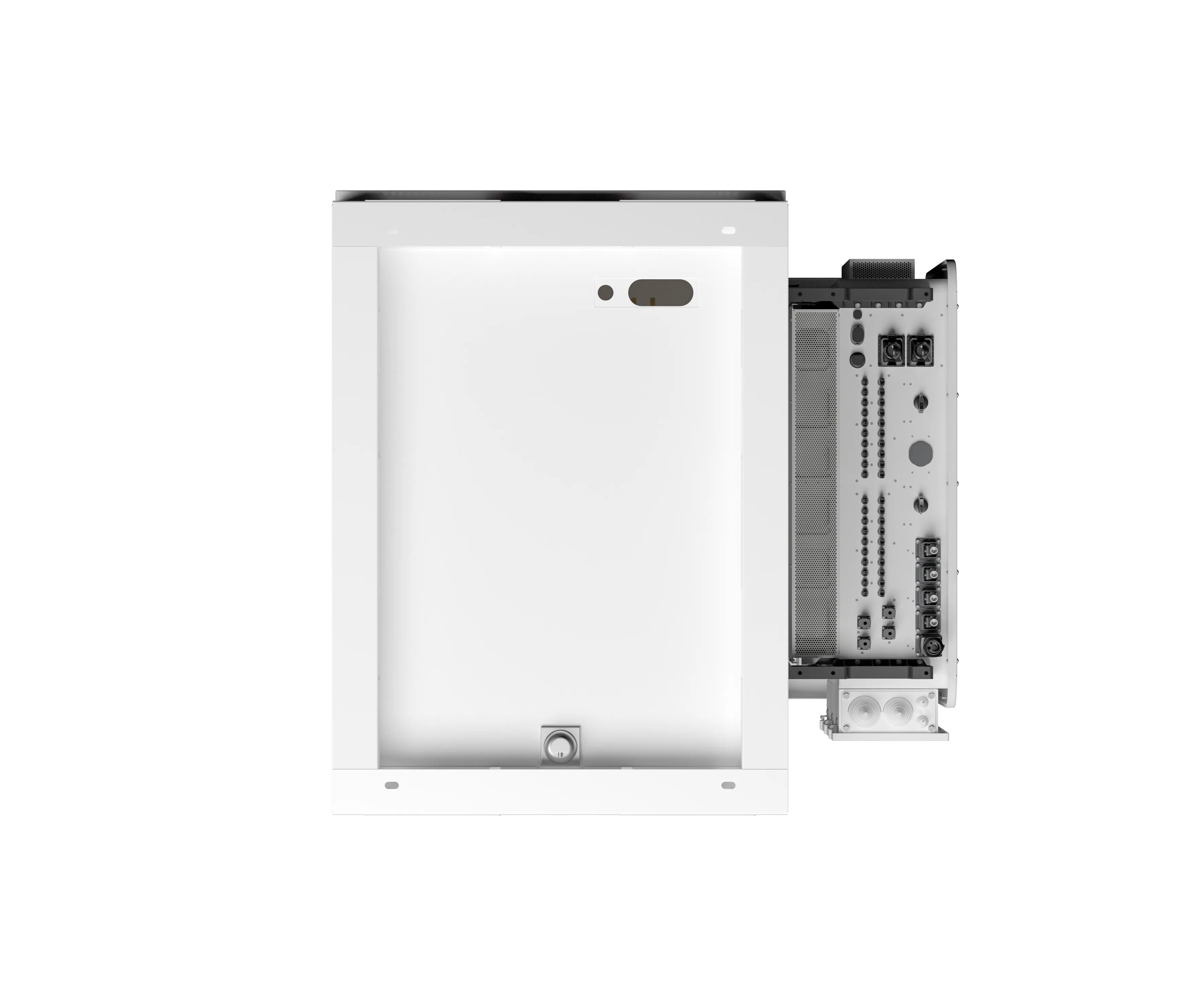

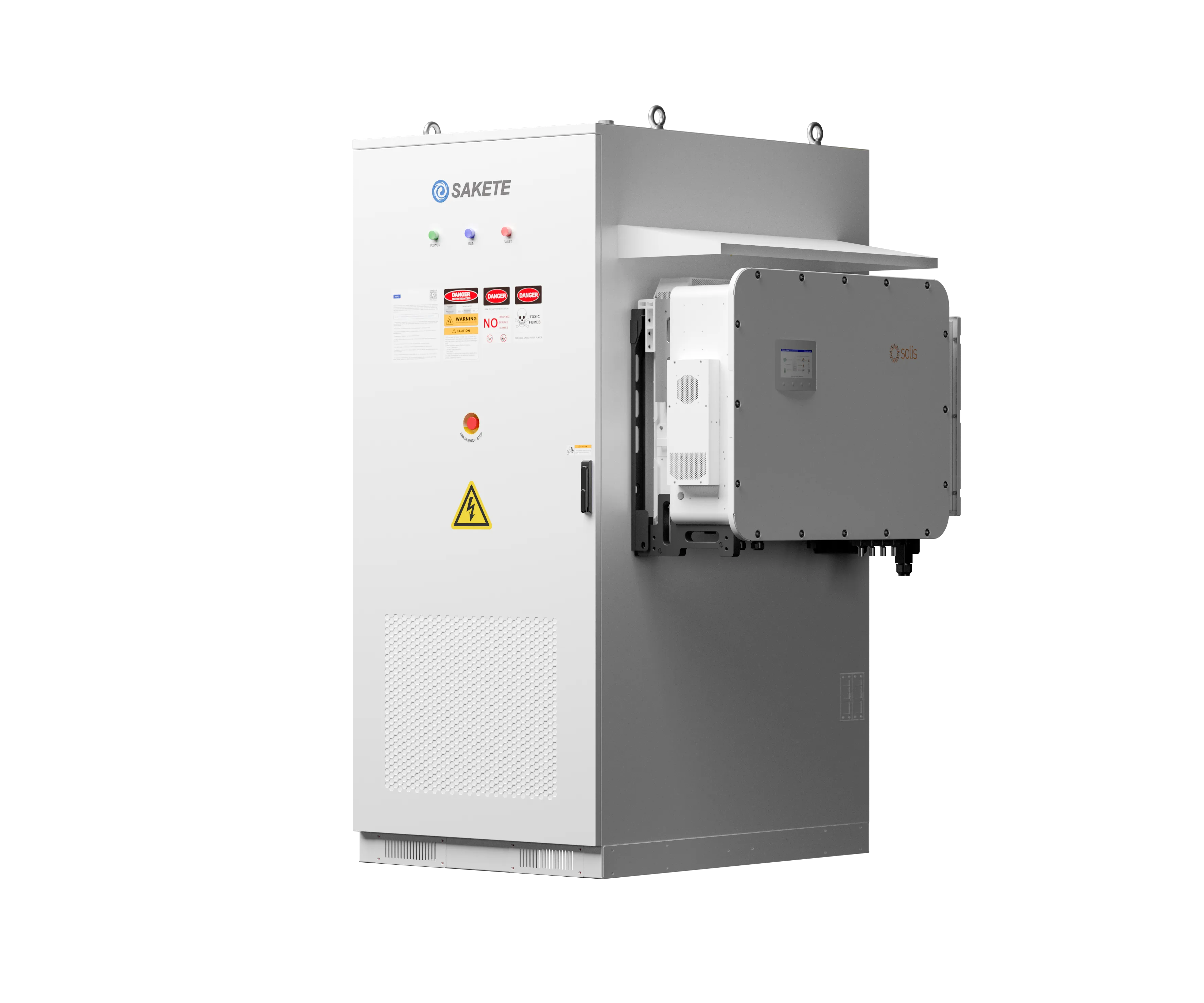

Liquid-Cooled Battery Cabinet ESS 261kWh
Review curated product visuals and selected technical files for Liquid-Cooled Battery Cabinet ESS 261kWh.
Product range: All-in-One C&I ESS
No preview images are published for this product group yet.
Air-Cooled All-in-One C&I ESS 215kWh 100kW
Review curated product visuals and selected technical files for Air-Cooled All-in-One C&I ESS 215kWh 100kW.
No preview images are published for this product group yet.
Liquid-Cooled All-in-One C&I ESS 261kWh 125kW
Review curated product visuals and selected technical files for Liquid-Cooled All-in-One C&I ESS 261kWh 125kW.
Technical review
Product range: Containerized ESS
No preview images are published for this product group yet.
Containerized ESS 1.2MWh 500kW
Review curated product visuals and selected technical files for Containerized ESS 1.2MWh 500kW.
Technical review
No preview images are published for this product group yet.
Containerized ESS 2.17MWh 1MW
Review curated product visuals and selected technical files for Containerized ESS 2.17MWh 1MW.
Technical review
Containerized ESS 5MWh 2.5MW
Review curated product visuals and selected technical files for Containerized ESS 5MWh 2.5MW.
Containerized ESS 10MWh 5MW
Review curated product visuals and selected technical files for Containerized ESS 10MWh 5MW.
Technical review
Where this is applied
These products are deployed across the following commercial and grid-scale applications.
Peak Shaving
Battery systems discharge during demand peaks to reduce grid demand charges for factories and commercial sites.
View solution ›Self-Consumption Optimisation
Store daytime solar generation and use it when site demand is higher than PV output.

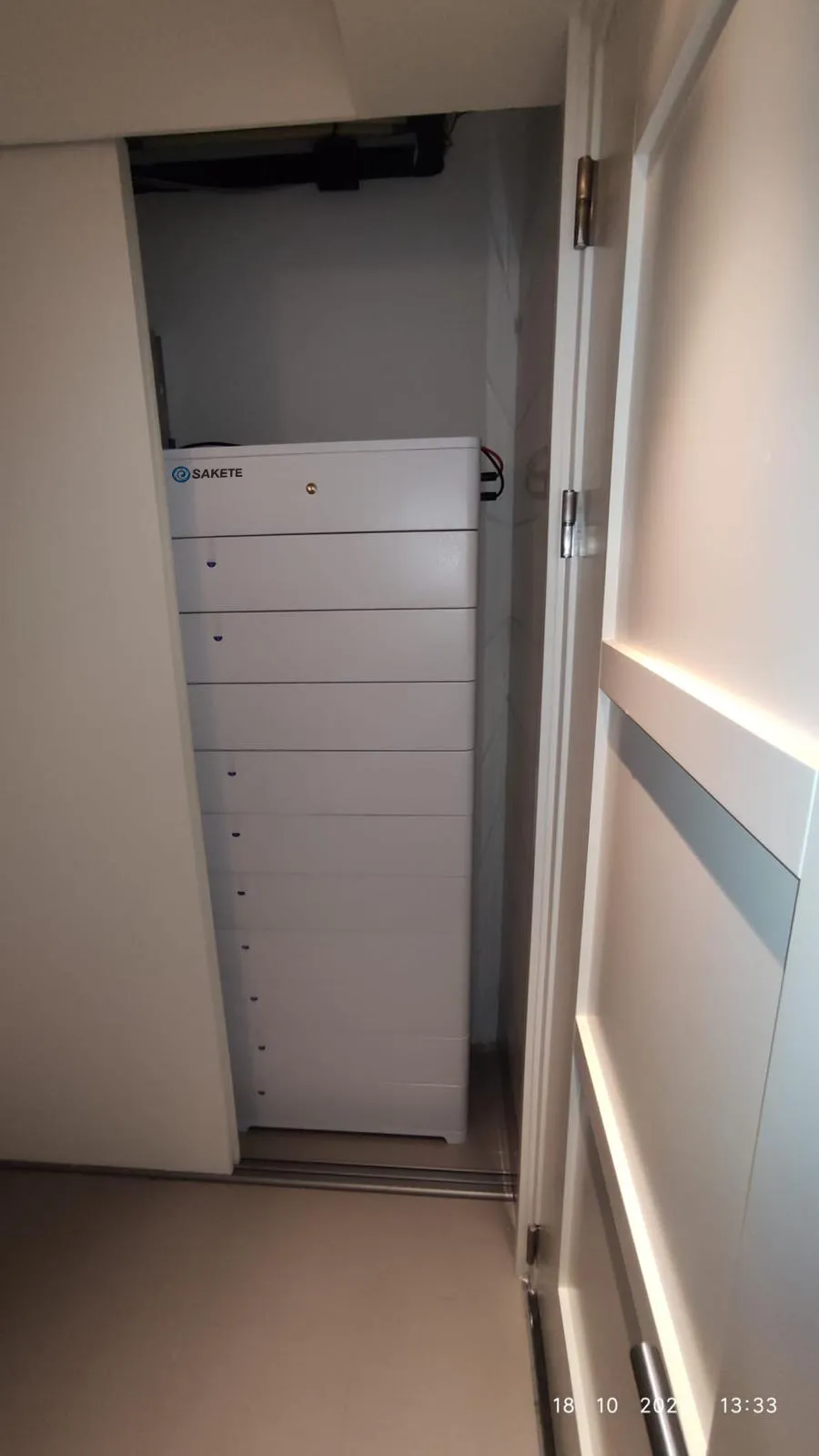

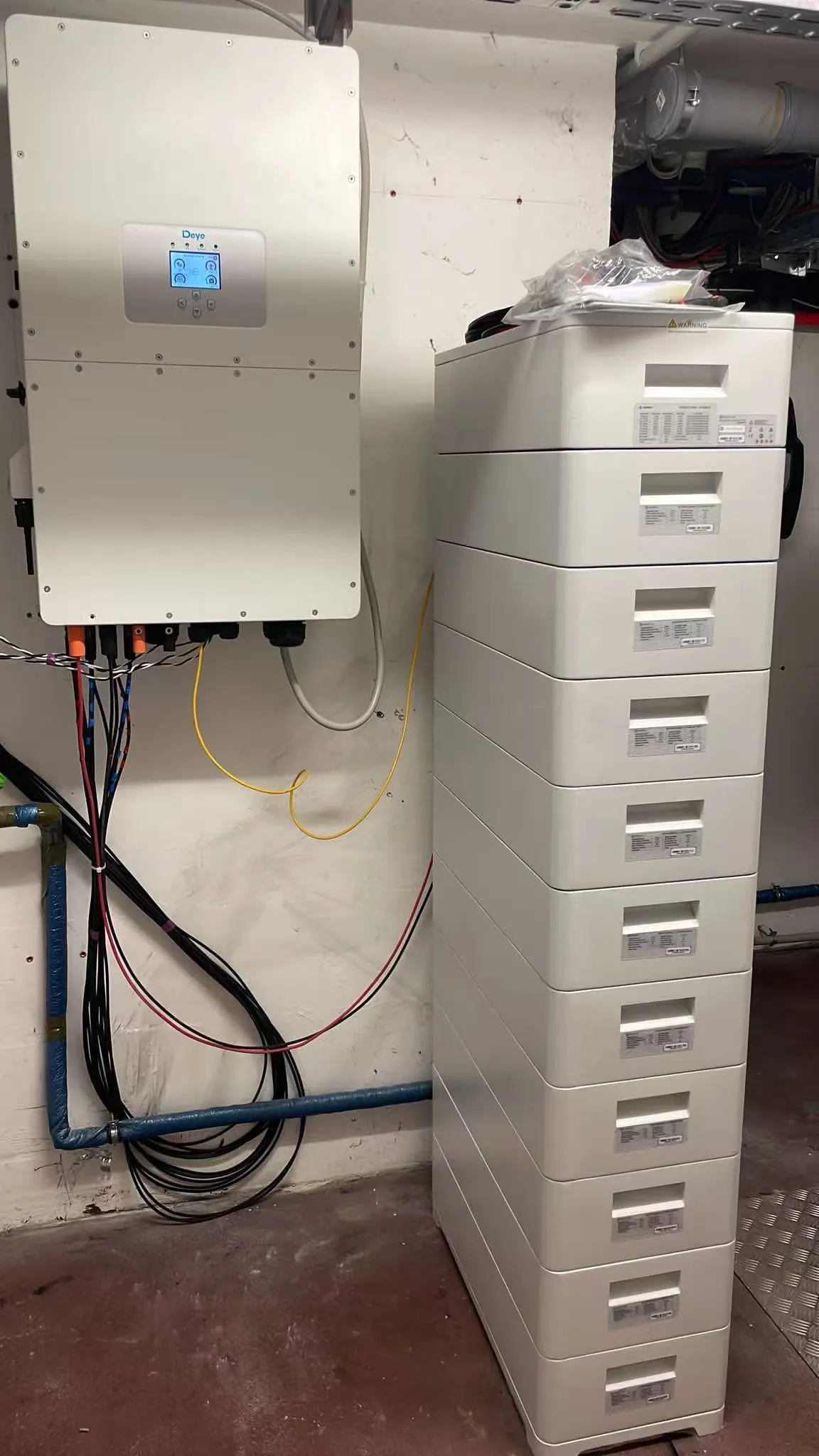

View solution ›PV + ESS
Commercial solar generation combined with battery storage for lower grid purchases and higher self-consumption.
View solution ›Warehouse Storage
Battery storage for logistics warehouses, cold storage and high-consumption commercial sites.
View solution ›Factory Rooftop PV
Rooftop PV systems for manufacturing sites with optional battery storage and inverter matching.
View solution ›Commercial Buildings
Solar, storage and energy management packages for offices, retail buildings and mixed-use sites.
View solution ›Grid-Scale Storage
Utility-scale battery energy storage from 5 MWh containers to 80 MW / 160 MWh plants for arbitrage, grid services and standalone BESS.
View solution ›
Product FAQ
What makes a battery product a complete ESS?
A complete ESS combines battery storage with a matched hybrid inverter or PCS, plus BMS, EMS, protection and cabinet or container integration.
What does external hybrid inverter ESS mean?
It means the battery cabinet is paired with a separate external hybrid inverter instead of being fully integrated inside one cabinet.
Are PCS products included in ESS matching?
Yes. PCS matching is part of the ESS architecture for larger C&I storage projects, especially all-in-one and containerized systems.
Are the systems grid-code compliant?
Yes. PCS options support European grid-connection codes including EN 50549, VDE-AR-N 4105, G99 and IEC 62116 anti-islanding, confirmed per project and country.
