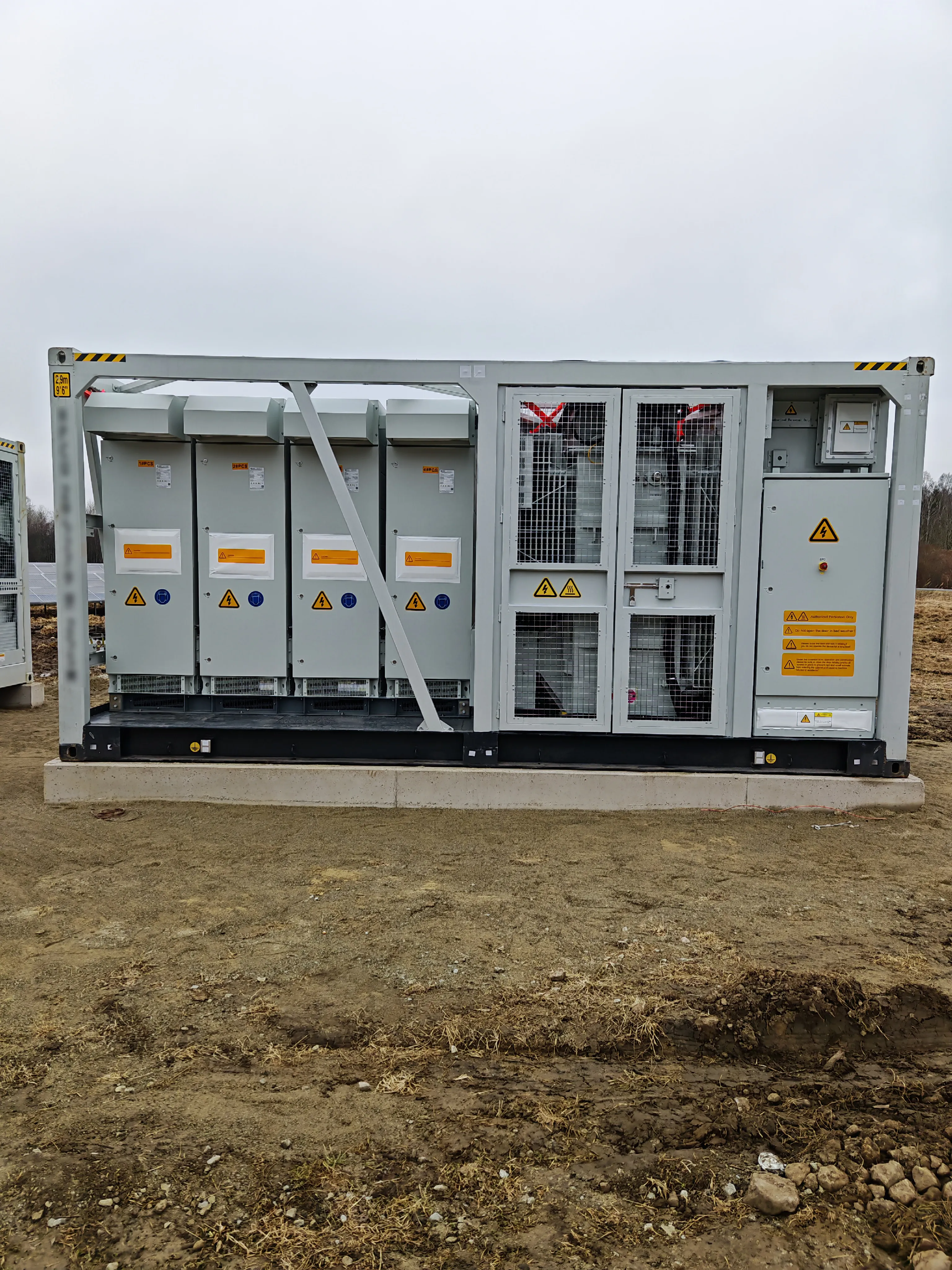

Utility-scale BESS
Utility-Scale Battery Energy Storage for Grid-Scale Projects in Europe
SAKETE utility-scale BESS uses standardized 5 MWh containers and 10 MWh / 5 MW integrated blocks that scale into 20 MWh AC blocks and 80 MW / 160 MWh grid-connected plants, delivered turnkey with central PCS, medium-voltage step-up and EMS.
SAKETE utility-scale BESS scales from a single 5 MWh container and 10 MWh integrated block up to multi-unit 20 MWh AC blocks and 80 MW / 160 MWh grid-connected plants, delivered turnkey with central PCS and medium-voltage step-up. Optional grid-forming control supports weak-grid and standalone applications.
EU local stock B2B project supply German after-sales
At a glance
Compare the core electrical and physical specifications across the range. Full datasheets are linked on each product page.
| Model | Capacity | Power | Voltage | Cycle life | Cooling | Dimensions (W×D×H) | Warranty |
|---|---|---|---|---|---|---|---|
| SKTESS2170-1000KRequest quote › | 2.17 MWh | 1 MW PCS | 768 V | ≥ 8,000 | Hybrid cooling | 6058 × 2438 × 2591 mm (20 ft) | 3 yr system (≤6,000 cycles) |
| SKTESS5000-2500KRequest quote › | 5.02 MWh | 2.5 MW prefab inverter substation | 1331.2 V | ≥ 6,000 | Liquid cooling | 6058 × 2438 × 2896 mm (20 ft) | 3 yr system (≤6,000 cycles) |
| SKTESS10000-5000KRequest quote › | 10.03 MWh | 5 MW PCS (2.5 MW × 2 block) | 1331.2 V | ≥ 6,000 | Liquid cooling | 6058 × 2438 × 2896 mm × 3 (20 ft) | 3 yr system (≤6,000 cycles) |

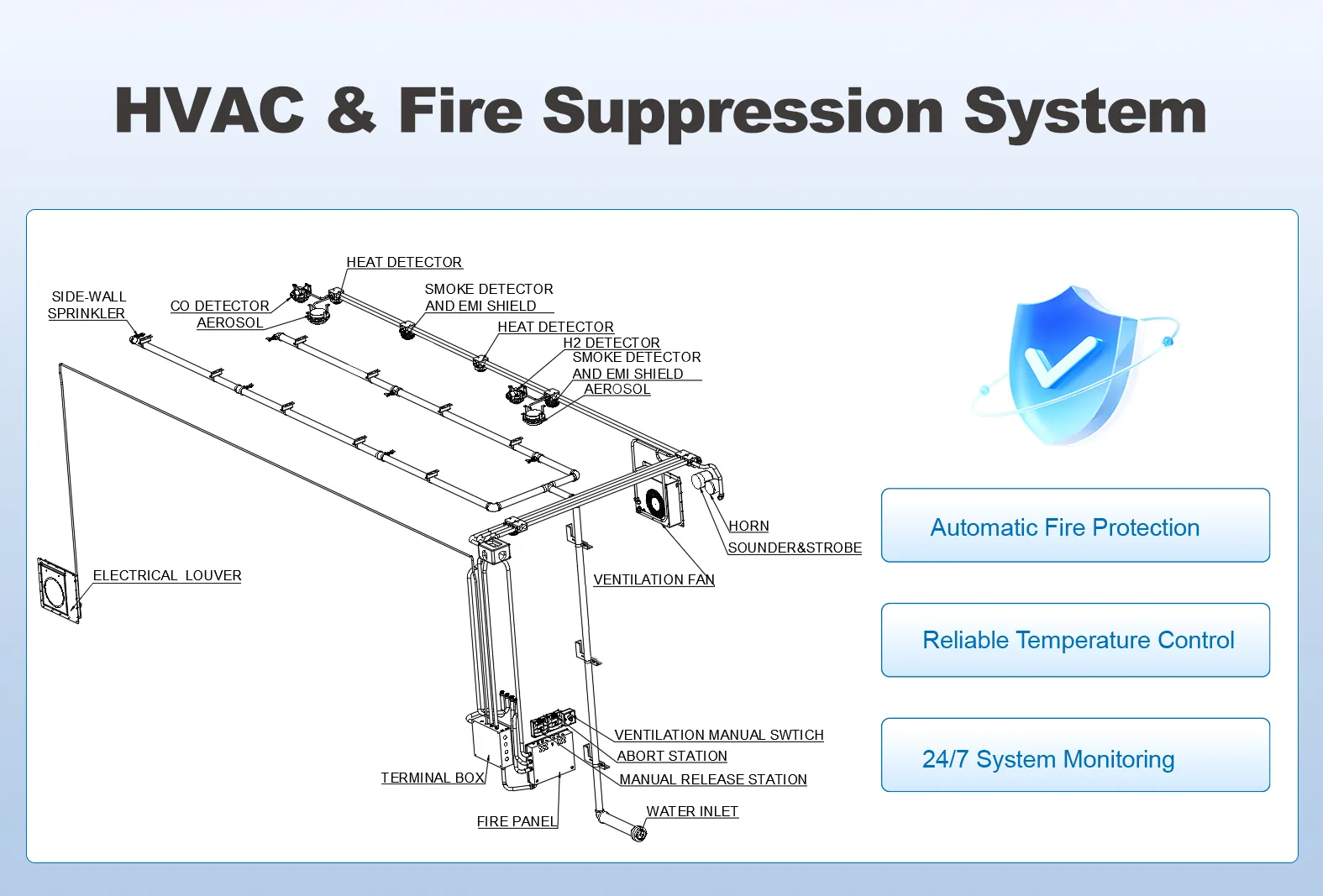

Certifications & safety
Products in this range are certified to European and international standards for cells, power electronics, transport and EMC.
- CE
- UN 38.3
- IEC 62619
- IEC 62477
- EMC EN IEC 61000
Common applications
- Standalone grid-scale BESS
- Energy arbitrage and trading
- Frequency response and grid stability
- Solar-plus-storage at plant scale
- Capacity and ancillary services
Procurement reasons
- Standardized 5 MWh / 10 MWh building blocks
- Central PCS with prefabricated inverter substation
- Turnkey scope to 80 MW / 160 MWh
- Optional grid-forming control
- LFP cells rated for 8,000+ cycles with multi-level safety
Product range: Grid-Scale Containers & Blocks
No preview images are published for this product group yet.
Grid-Scale Battery Container 2.17MWh 1MW
Entry-point grid-scale block: a 2.17 MWh battery container with 1 MW PCS for distributed BESS and small substation projects.
Technical review

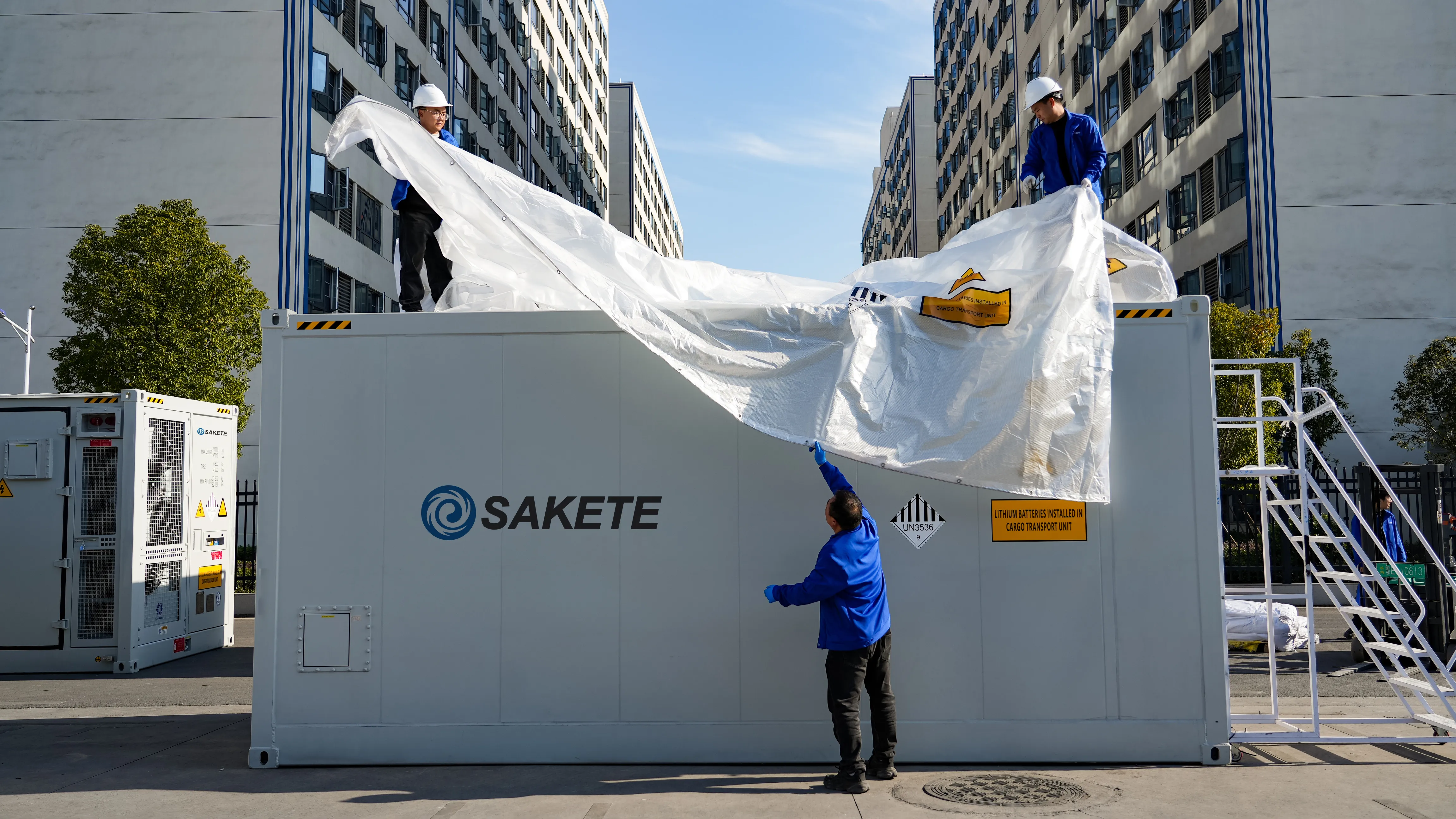

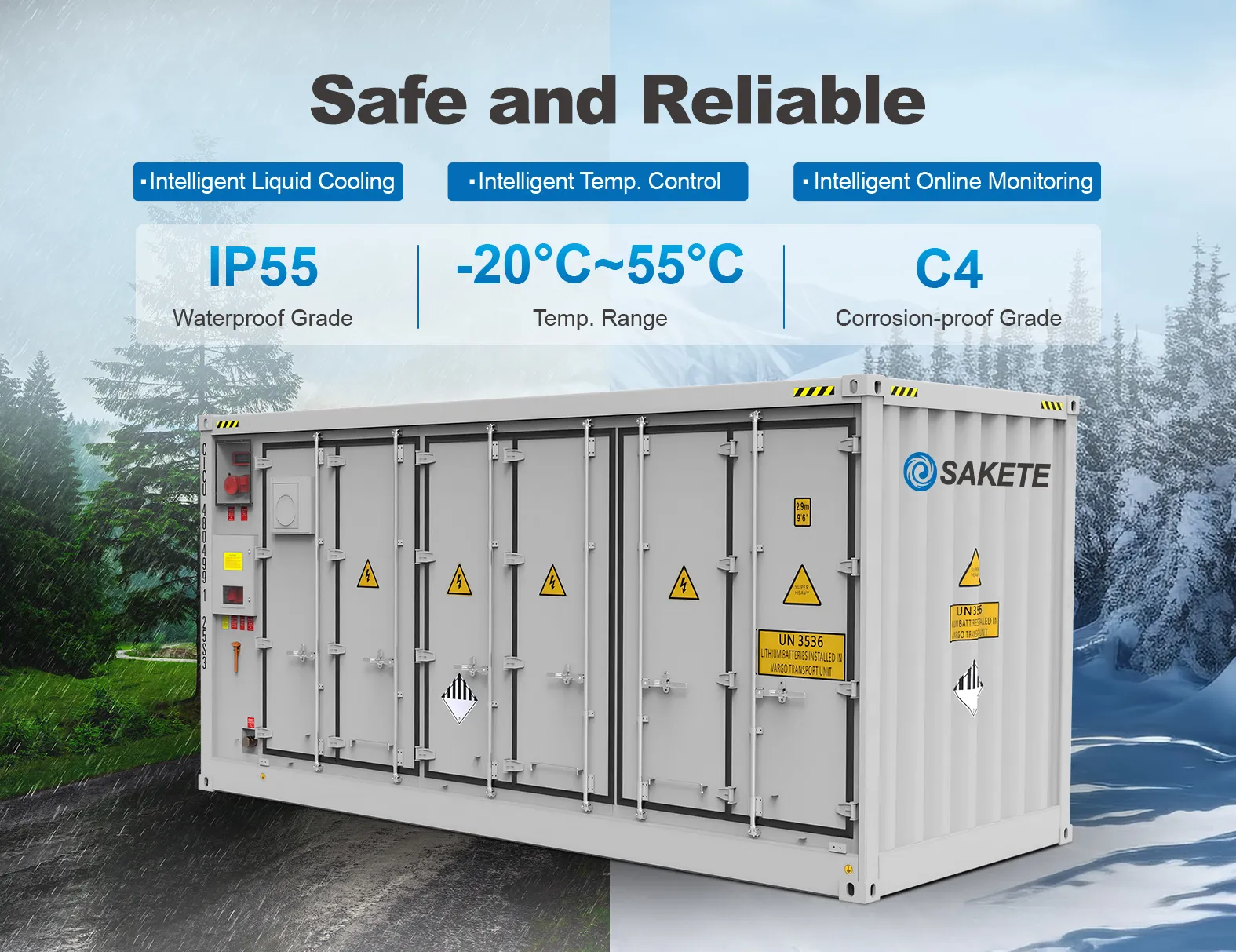

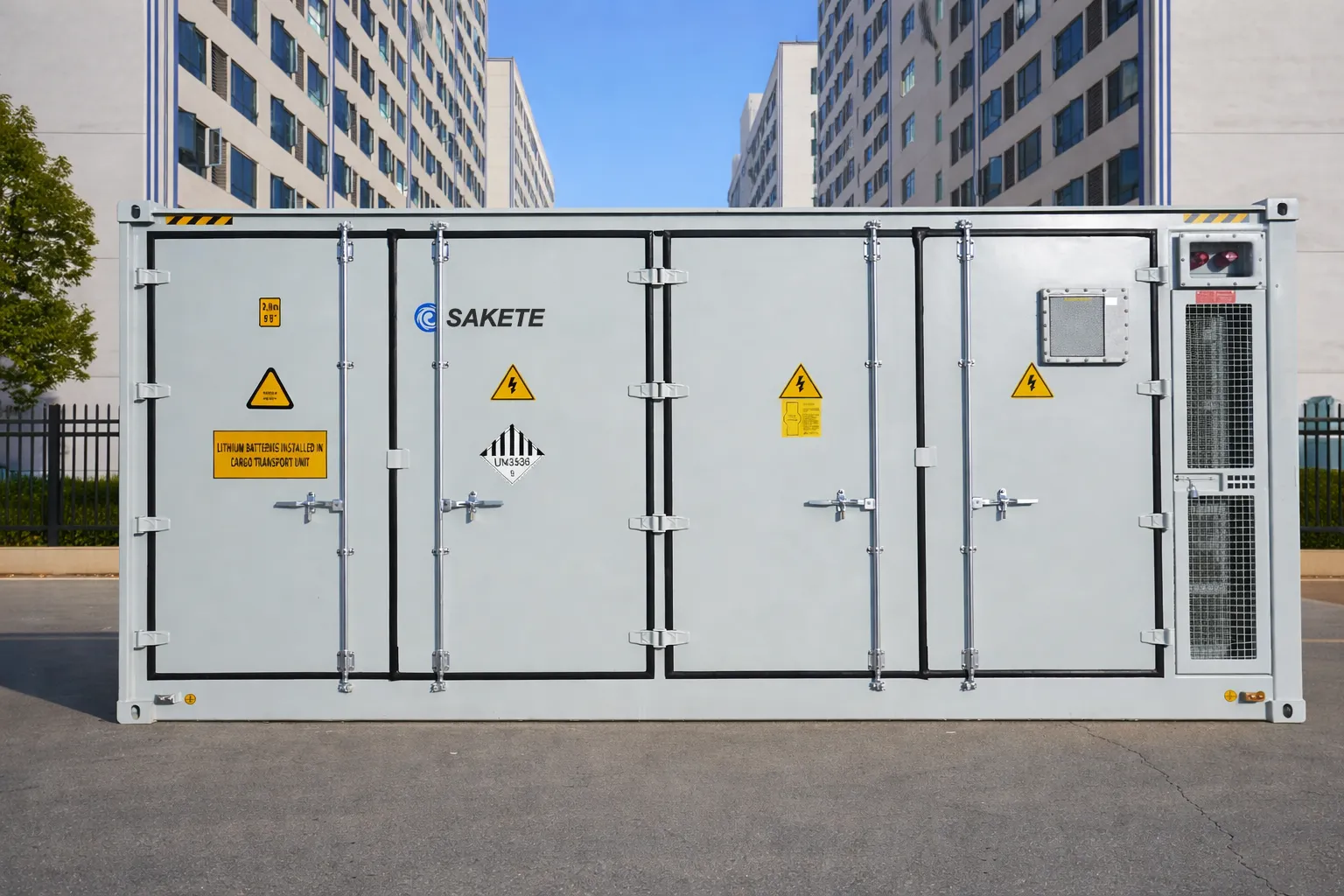

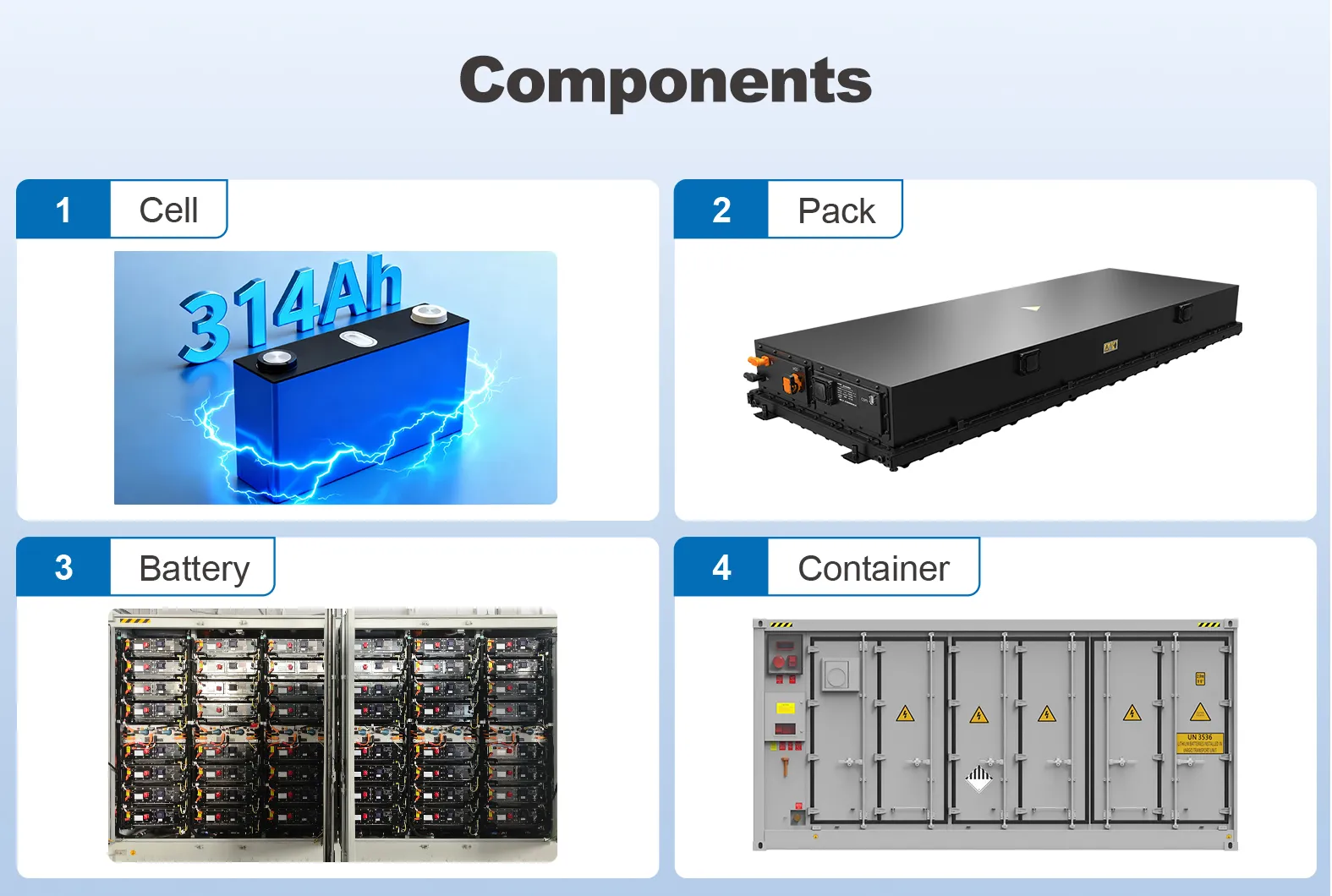

Grid-Scale Battery Container 5MWh 2.5MW
SKTESS5000 5 MWh container with 2.5 MW prefabricated inverter substation — the standard building block for utility-scale plants.

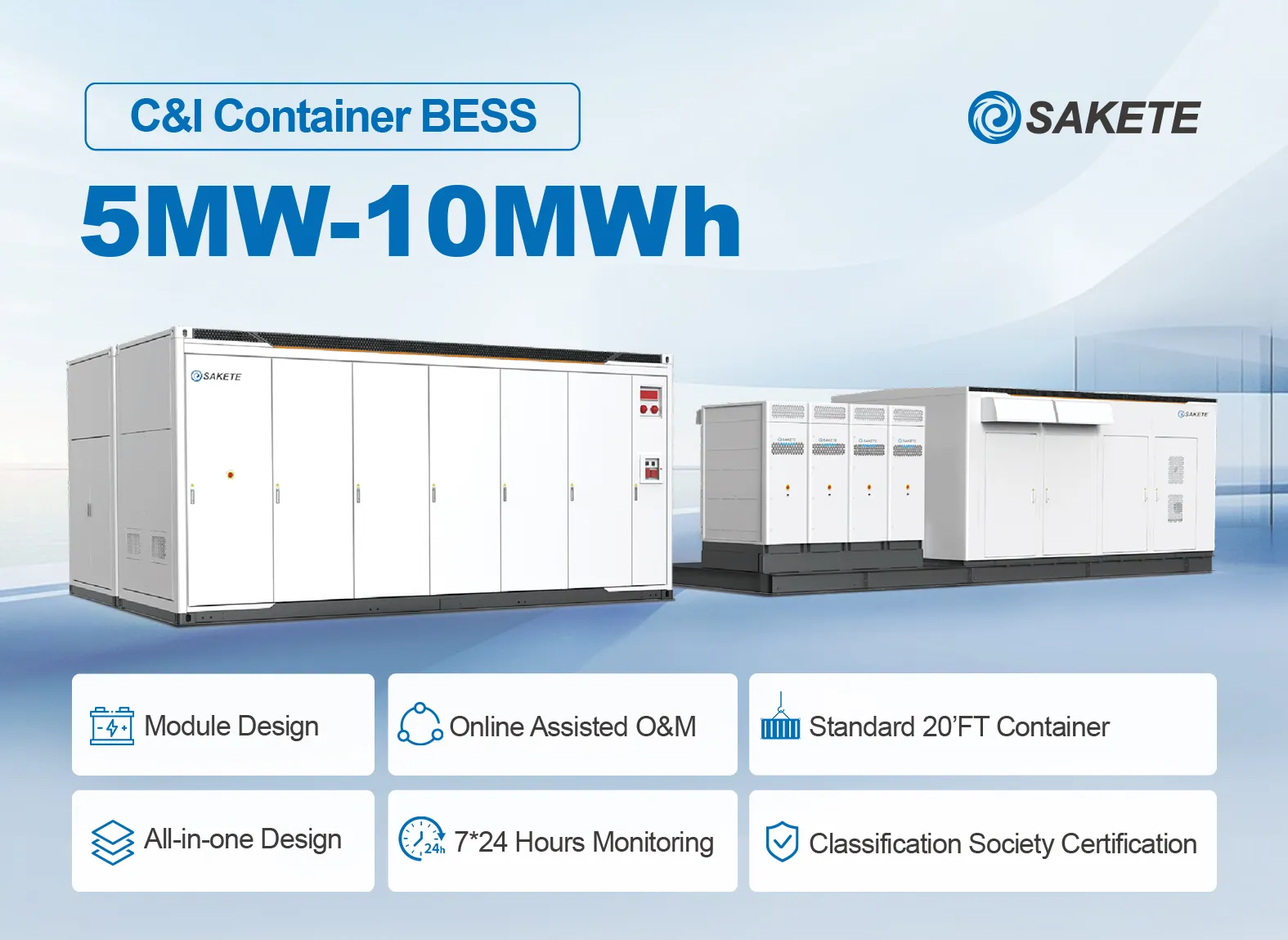

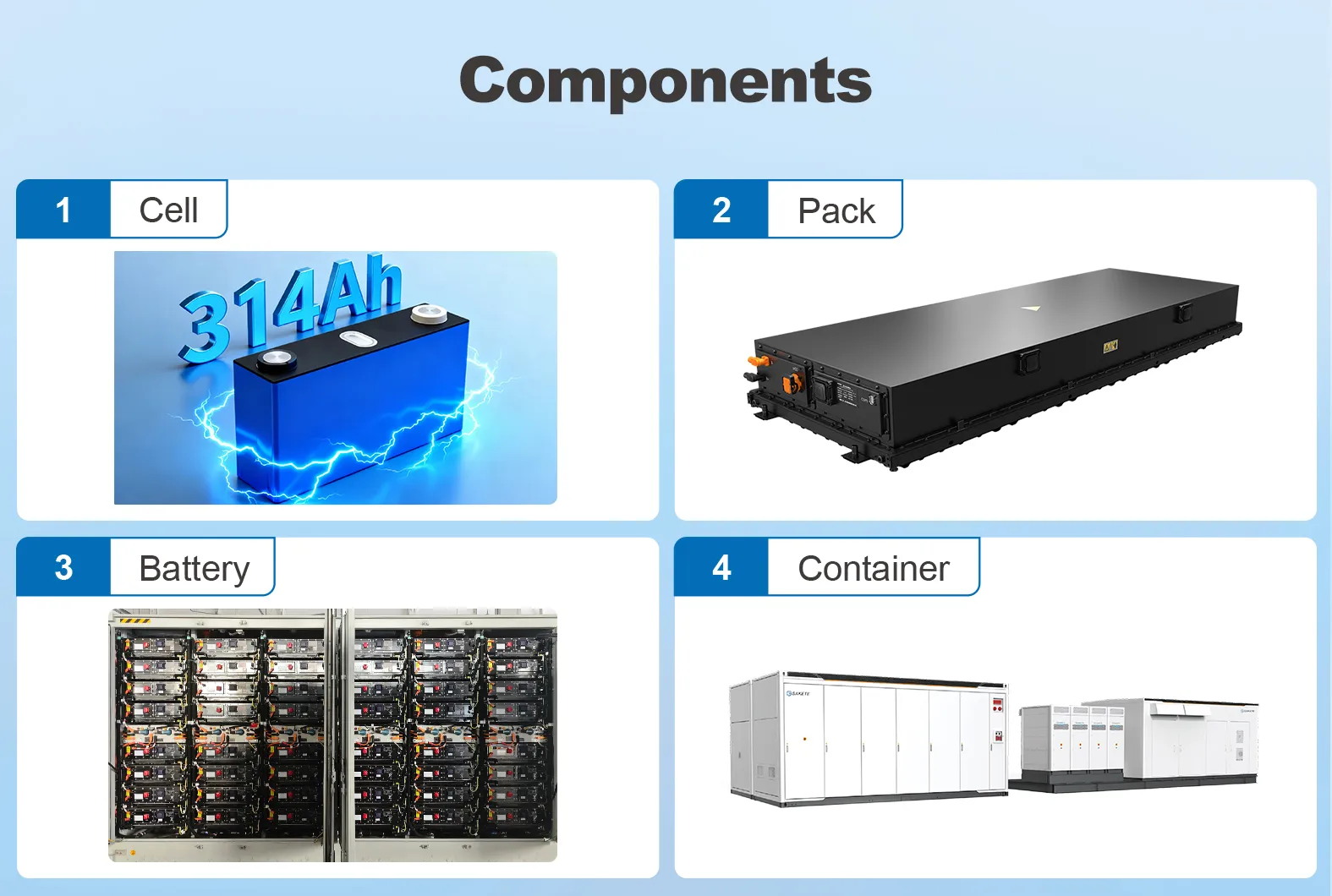

Grid-Scale Integrated Block 10MWh 5MW
SKTESS10000-5000K integrated block: 10 MWh battery with 5 MW PCS, the AC-block unit that scales to 80 MW / 160 MWh plants.
Technical review
Where this is applied
These products are deployed across the following commercial and grid-scale applications.
Grid-Scale Storage
Utility-scale battery energy storage from 5 MWh containers to 80 MW / 160 MWh plants for arbitrage, grid services and standalone BESS.
View solution ›Peak Shaving
Battery systems discharge during demand peaks to reduce grid demand charges for factories and commercial sites.

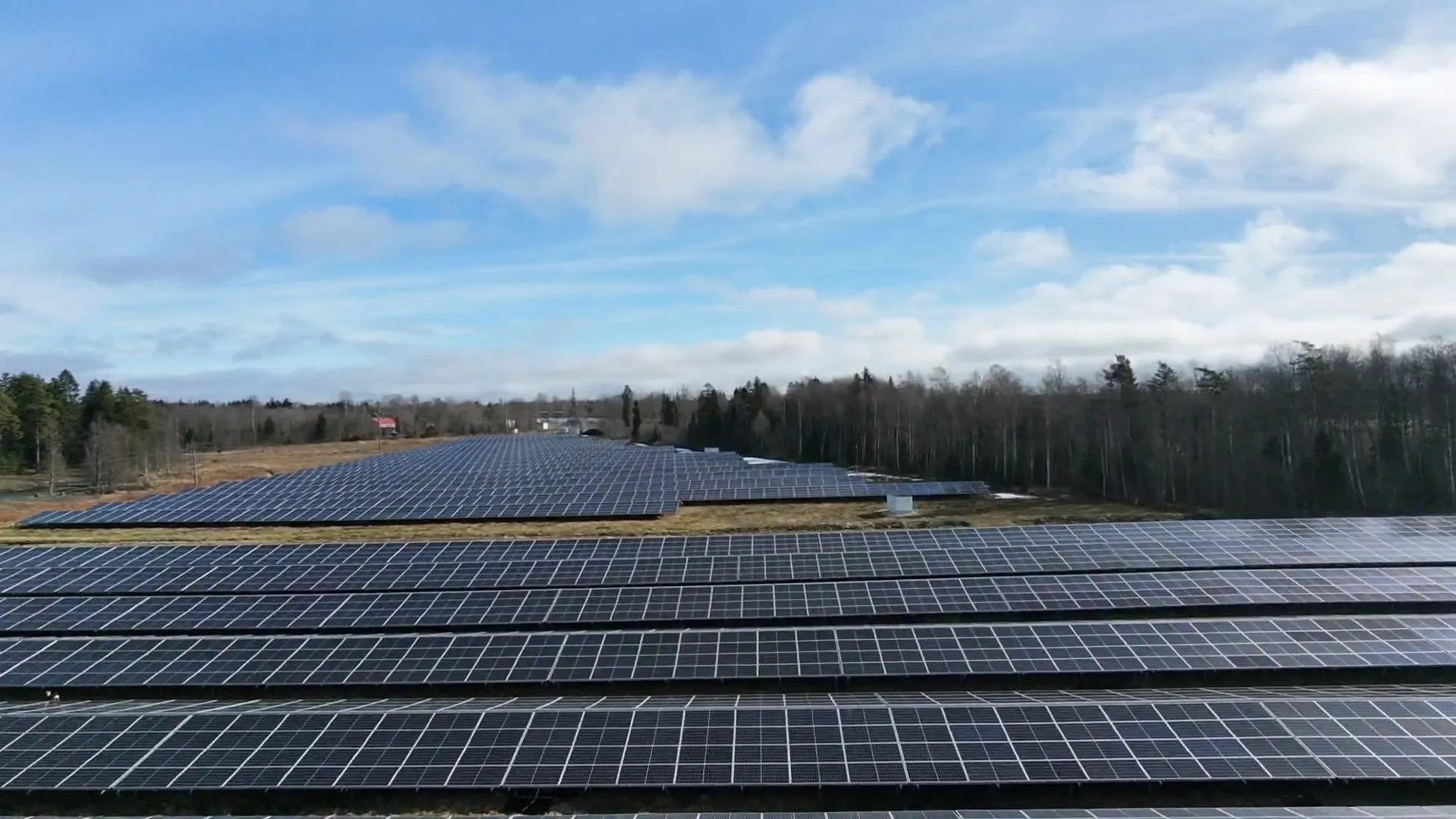

View solution ›PV + ESS
Commercial solar generation combined with battery storage for lower grid purchases and higher self-consumption.
View solution ›
Product FAQ
How large can a SAKETE utility-scale system be?
Systems scale from a single 5 MWh container and 10 MWh / 5 MW block up to multi-unit 20 MWh AC blocks and 80 MW / 160 MWh grid-connected plants.
Is the PCS and step-up transformer included?
Yes. Utility-scale projects are delivered turnkey with central PCS, prefabricated inverter substations (SKTESS2500K / 5000K / 10000K class) and medium-voltage step-up.
Does it support grid-forming operation?
Grid-forming control is available as an option for weak-grid, standalone and stability-service applications.
Which grid codes are supported?
PCS options are grid-code compliant for European connection, including EN 50549, VDE-AR-N 4105, G99 and IEC 62116 anti-islanding, confirmed per project and country.
